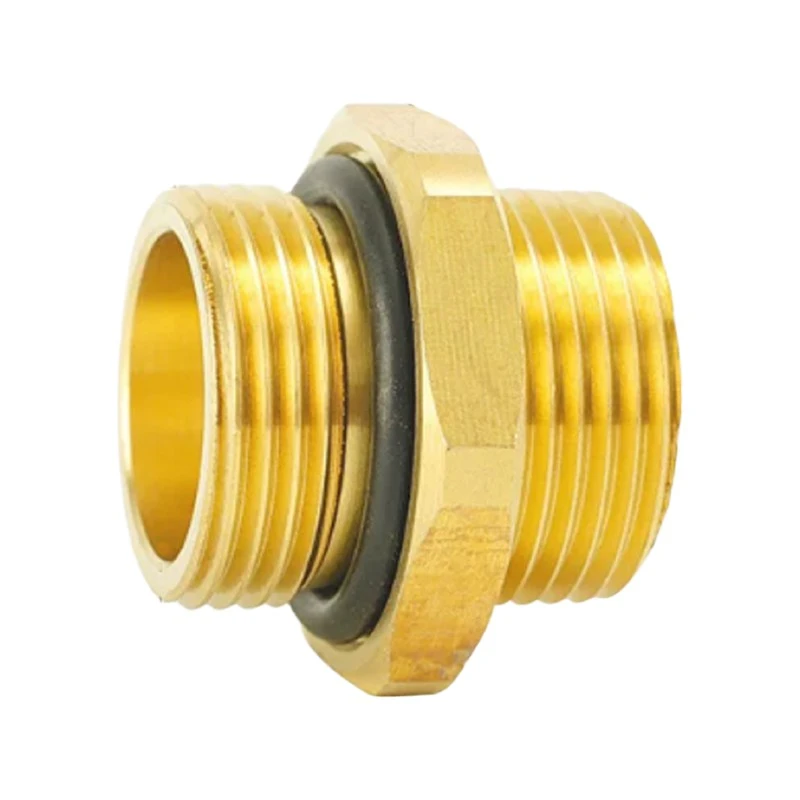

Brass Double Male Thread Adapter with O-Ring Seal

NINGXING Brass Double Male Thread Adapter with O-Ring Seal is designed for reliable connections in pneumatic, hydraulic, fluid transfer, instrumentation, and equipment piping systems. Manufactured from precision-machined CuZn39Pb3 brass, with nickel-plated brass available, the adapter combines dimensional accuracy, corrosion resistance, and dependable sealing. Its integrated O-ring creates a sealing barrier at the connection face, helping reduce leakage caused by vibration, pressure fluctuations, or installation errors. Metric, BSP/G, and NPT thread options are available, along with NBR, EPDM, FKM, and silicone O-ring materials. Standard sizes are available from stock, while OEM/ODM customization is supported.

Sealing Structure and Connection Design

The connection reliability of a pipe adapter depends not only on thread accuracy but also on how the sealing surface responds to pressure, vibration, and repeated maintenance. The Brass Double Male Thread Adapter with O-Ring Seal uses male threads on both ends to connect two female-threaded ports. For straight threads such as G and Metric threads, the O-ring provides the primary sealing function at the mating face. When the connection is tightened, the O-ring is compressed inside its precision-machined groove to form an elastic barrier against air or liquid leakage.

This sealing structure reduces dependence on PTFE tape or liquid thread sealants and provides a more consistent connection during equipment assembly and maintenance. The O-ring can also be inspected or replaced separately, making the adapter practical for systems that require periodic servicing. For NPT versions, the tapered thread itself contributes to mechanical sealing, while an additional sealing solution can be selected according to the application.

Material and Machining Control

NINGXING manufactures the adapter using CuZn39Pb3 brass bar stock. Nickel plating can be applied to improve surface protection and provide a uniform metallic finish. The brass construction offers a suitable balance between machinability, mechanical strength, and corrosion resistance for common industrial connection applications.

Precision CNC turning is used for the main body and thread features. The machining tolerance can be controlled within ±0.02mm, supporting consistent thread engagement between the adapter and mating components. The O-ring groove is produced with dedicated forming tools to maintain groove dimensions and surface quality. Proper groove geometry helps maintain the required O-ring compression and reduces the risk of leakage caused by incorrect sealing-element positioning.

Thread Compatibility

Selecting the correct thread standard is important when purchasing a double male adapter because similar nominal sizes may use different thread forms. NINGXING supports Metric, G/BSP, and NPT thread configurations for different equipment and piping standards.

Metric threads are commonly used in industrial machinery and pneumatic components, while G/BSP threads are widely used in international piping and equipment connections. NPT tapered threads are frequently found in North American fluid and pneumatic systems. Before ordering, buyers should confirm the thread standard, nominal size, pitch or thread specification, and sealing method of the mating port.

Technical Specifications

Actual pressure capability depends on adapter size, thread configuration, sealing material, mating components, and connected piping.

Size and Thread Dimension Reference

O-Ring Material Selection

NBR O-Ring

NBR is the standard sealing material and is commonly selected for compressed air, mineral oil, hydraulic oil, and general industrial applications. It provides a practical combination of sealing performance, wear resistance, and cost efficiency under suitable operating conditions.

EPDM O-Ring

EPDM is suitable for applications involving water, hot water, weather exposure, and selected water-based fluids. It can be selected when the system conditions require better resistance to water and environmental exposure than conventional NBR.

FKM O-Ring

FKM is designed for more demanding temperature and chemical conditions. It is commonly considered for applications involving elevated temperatures, oils, fuels, and selected chemical media where a higher level of sealing-material resistance is required.

Silicone O-Ring

Silicone O-rings provide good flexibility over a broad temperature range and can be used for selected specialized applications. The actual suitability should be confirmed according to the working medium, pressure, temperature, and equipment requirements.

Installation and Maintenance

Correct installation has a direct effect on sealing performance. Before assembly, the female port, thread, sealing face, and O-ring groove should be clean and free from metal chips, dust, or other contaminants. The adapter should be aligned with the mating port before tightening to avoid cross-threading or damage to the sealing element.

For straight-thread versions, the connection should be tightened until the O-ring reaches the specified compression. Excessive tightening should be avoided because over-compression may deform the O-ring, damage the groove, or affect the service life of the connection. During routine maintenance, the O-ring should be checked for cracks, hardening, flattening, or permanent deformation. If the sealing element is damaged, it can normally be replaced without replacing the complete adapter.

Application Cases

Compressed Air System

A machinery manufacturer previously experienced frequent air leakage from conventional threaded connections on its production line. After replacing the existing fittings with the Brass Double Male Thread Adapter with O-Ring Seal, the face-sealing structure provided a more stable sealing interface. The compressed O-ring maintained the connection when the production equipment experienced minor vibration.

Following the replacement, the customer's reported air leakage rate decreased by more than 90%, resulting in annual compressed-air energy savings of approximately RMB 150,000.

Hydraulic Equipment Maintenance

An engineering machinery service provider needed to replace pipe connections on excavator hydraulic systems. Conventional PTFE tape and thread sealant had created maintenance difficulties and could become less reliable under high pressure and frequent vibration. The O-ring sealing structure allowed technicians to complete the connection without applying additional sealing material, helping simplify the maintenance process. The customer reported approximately 40% improvement in maintenance efficiency.

Instrumentation and Laboratory Equipment

A precision instrument manufacturer required a high-tightness connection for a gas analysis system. The nickel-plated brass construction provided a clean and durable surface, while the O-ring helped maintain sealing integrity around the connection. The compact machined structure also fitted the space and appearance requirements of precision analytical equipment.

Purchasing and Selection Guide

Confirm the Thread Standard

Before placing an order, buyers should verify whether the equipment uses Metric, G/BSP, or NPT threads. The nominal diameter alone may not be sufficient because different thread standards can have similar dimensions but cannot necessarily be directly interchanged.

Match the Sealing Material

The O-ring material should be selected according to the actual medium and temperature. NBR can cover many general industrial applications, while EPDM, FKM, or silicone may be more appropriate for specific temperature, chemical, or environmental conditions. Providing the medium and operating temperature to the supplier can help avoid incorrect material selection.

Check Pressure Requirements

The adapter should not be evaluated separately from the complete piping system. Maximum working pressure can vary according to thread size, connection structure, O-ring material, temperature, mating port, and connected pipe. For high-pressure applications, the complete connection configuration should be confirmed before installation.

Consider Surface Treatment

Nickel-plated brass can provide additional surface protection compared with untreated brass and is suitable for many industrial and humid environments. For applications involving highly corrosive chemicals or unusual environmental conditions, the material and surface treatment should be evaluated based on the specific operating environment.

Stock and Customization

Common specifications including G1/4" to G1", M12 to M25, and NPT 1/4" to NPT 1/2" are available from stock for fast shipment. Standard orders can normally be prepared for rapid dispatch, while special specifications may require additional production time.

NINGXING supports OEM/ODM customization for non-standard thread sizes, special O-ring materials, body dimensions, and surface treatments. Customers can provide technical drawings, samples, thread specifications, or application requirements for engineering evaluation. Customized orders generally require approximately 7-15 working days depending on material availability and machining requirements.

Quality and Certifications

NINGXING organizes production according to an ISO 9001:2015 quality management system. Each production batch undergoes dimensional verification and thread inspection, while first-piece inspection is performed before batch production to confirm critical dimensions. Finished products are also checked for machining consistency and appearance.

Thread gauges can be used to verify thread conformity, and sealing-related products can undergo air-tightness testing according to applicable production requirements. The product is available with CE and RoHS certifications for applicable markets.

FAQ

How long does the O-ring normally last?

The service life of an O-ring depends on temperature, pressure, medium, installation conditions, and material selection. Under typical pneumatic conditions of approximately -20℃ to +80℃ and pressure up to 10 bar, an NBR O-ring may typically operate for around 2-3 years. Actual replacement intervals should be determined according to operating conditions and regular inspection.

Which media can be used with the adapter?

The adapter can be configured for compressed air, water, oil, gas, refrigerants, and other fluids. However, compatibility depends largely on the O-ring material. NBR, EPDM, FKM, and silicone have different chemical and temperature resistance characteristics, so the selected sealing material should match the actual medium and operating conditions.

What is the difference between NPT and G threads?

NPT is a tapered pipe thread that uses its tapered geometry to create an interference-type connection. G thread, based on ISO 228, is a straight pipe thread and normally requires a sealing element such as an O-ring or gasket when used as a sealing connection. Therefore, the thread standard and sealing method should both be confirmed before ordering.

Is the product available from stock?

Yes. Common specifications are maintained in stock for faster delivery. Standard sizes such as G1/4"-G1", M12-M25, and NPT 1/4"-NPT 1/2" can normally be dispatched quickly. Customized specifications require additional production time according to the required material and machining process.

Can NINGXING provide customized versions?

Yes. NINGXING provides OEM/ODM services for non-standard thread sizes, special O-ring materials, body dimensions, and surface treatments. Customers can provide drawings, samples, thread specifications, or application requirements for evaluation before production.

Can the O-ring be replaced separately?

Yes. The sealing element can generally be replaced without replacing the entire adapter when the brass body and O-ring groove remain in good condition. The replacement O-ring should have the correct size, material, and hardness for the application.

Can it be used in high-pressure systems?

The maximum stated working pressure is up to 60 bar under specified conditions. Actual allowable pressure depends on the adapter size, thread type, temperature, O-ring material, mating components, and connected piping system. For high-pressure applications, the complete connection configuration should be evaluated before use.

Will the brass body corrode?

The brass body provides good corrosion resistance for many industrial environments, while nickel plating adds another layer of surface protection. In humid or general industrial environments, nickel-plated brass can provide improved surface durability. For highly corrosive media, the complete material and surface-treatment combination should be confirmed according to the application.

Request Technical Information

For bulk purchasing, equipment integration, or OEM/ODM projects, customers can provide the required thread standard, size, medium, working pressure, temperature range, and O-ring material. NINGXING can recommend a suitable configuration and provide dimensional or technical information for confirmation.
