Factory Direct Aluminum-Plastic Pipe Fittings for Reliable Plumbing Systems

NINGXING is a professional Manufacturer specializing in brass plumbing fittings and precision metal components. As a reliable Supplier in the plumbing and heating industry, we operate our own advanced Factory equipped with brass forging, CNC machining, assembly, and inspection facilities. Our Aluminum-Plastic Pipe Fitting series is developed specifically for PEX-AL-PEX pipes, providing stable connections between composite pipes, valves, manifolds, radiators, and other water system components.

Structure of Composite Pipe Connection

A Pipe Fitting is a specialized connector designed for PEX-AL-PEX multilayer pipes. Unlike traditional plastic pipes, aluminum composite pipes consist of inner and outer polyethylene layers, a middle aluminum layer, and adhesive bonding layers. The fitting design must secure the pipe firmly while protecting the internal aluminum layer from damage during installation.

A high-quality aluminum plastic pipe connector generally consists of a brass body, sealing elements, and a locking structure. The brass body provides mechanical strength and pressure resistance, while sealing rings prevent leakage between the pipe and fitting. The locking mechanism ensures stable connection performance under continuous temperature changes and pressure fluctuations.

During installation, the aluminum plastic pipe is inserted into the fitting body and fixed through crimping, sliding, or threaded connection methods. Proper structural design helps reduce leakage risks caused by thermal expansion, contraction, and long-term system operation.

Connection Options

Different construction requirements require different connection methods. NINGXING provides multiple Aluminum Plastic Pipe Fitting solutions to meet various installation environments, including concealed pipelines, heating systems, and equipment connections.

Press Connection

Press fittings are one of the most commonly used connection methods in modern plumbing projects. During installation, a professional pressing tool compresses the stainless steel sleeve or pressing ring around the pipe, creating a permanent mechanical connection between the aluminum plastic pipe and the brass fitting body.

This structure provides high installation efficiency and consistent connection quality, making it suitable for large-scale residential construction, commercial buildings, and concealed heating pipelines. The controlled pressing process reduces installation differences caused by manual operation and improves overall system reliability.

Slide Connection

Slide fittings utilize the elasticity and recovery characteristics of aluminum plastic pipes. After expanding the pipe end, the pipe is inserted onto the fitting body, and the sliding ring is pushed forward to complete the mechanical locking process.

Compared with conventional connection methods, the slide structure provides a larger contact area between the pipe and fitting, improving pull-out resistance and long-term stability. This method is commonly applied in underfloor heating systems, hot water circulation pipelines, and applications requiring reliable performance under repeated temperature changes.

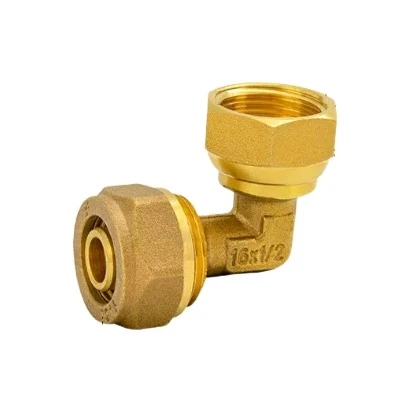

Threaded Transition Connection

Threaded fittings are mainly designed for connecting aluminum plastic pipes with other threaded equipment, such as valves, faucets, radiators, manifolds, and metal pipeline systems.

Available with male thread, female thread, or conversion structures, these fittings allow flexible connection between different pipeline components. They are widely used in renovation projects and applications where easy equipment replacement and maintenance are required.

Material Selection and Manufacturing Process

The performance of an Aluminum-Plastic Pipe Fitting depends largely on the material quality and manufacturing accuracy. NINGXING selects high-quality brass materials and applies advanced production technology to ensure stable mechanical strength, corrosion resistance, and long service life under different working conditions.

The main body is commonly manufactured from HPb59-1 or CW617N brass, which provides excellent machinability, pressure resistance, and dimensional stability. For projects with higher requirements, anti-dezincification brass materials such as CZ132 can also be selected to improve corrosion resistance in special water environments.

Unlike ordinary cast fittings that may contain internal defects such as pores or shrinkage cavities, NINGXING uses precision forging technology to produce brass components with a denser internal structure. The forging process improves fatigue resistance and reduces the risk of leakage caused by long-term pressure fluctuations.

Each fitting undergoes precision machining, surface treatment, and dimensional inspection before shipment. Thread accuracy, sealing groove size, and connection dimensions are strictly controlled to ensure compatibility with different aluminum plastic pipe systems.

Performance Parameters

For international buyers, selecting the correct specification is essential to ensure connection safety and system compatibility. NINGXING Aluminum Plastic Pipe Fitting products are available in various sizes and configurations to meet different engineering requirements.

Pipe Size Compatibility

The fittings are designed for common PEX-AL-PEX pipe dimensions, including 1216, 1620, 2025, and 2632 specifications. These size codes correspond to different inner and outer diameter combinations of aluminum plastic pipes, allowing customers to select matching fittings according to their existing pipeline design.

Accurate size matching is important because incorrect fitting selection may cause insufficient sealing pressure or installation difficulties. NINGXING maintains strict dimensional control to ensure reliable compatibility between pipes and connectors.

Pressure and Temperature Range

Standard Aluminum-Plastic Pipe Fitting products are generally designed for PN16 working pressure systems, suitable for common residential and commercial water applications. Depending on material selection and connection structure, products can typically operate within a temperature range from -20℃ to 120℃.

The fittings are suitable for cold water, hot water, heating circulation, and low-pressure gas pipeline applications when the corresponding product specifications and certifications are satisfied.

Sealing Components

Reliable sealing is achieved through high-quality EPDM O-rings or equivalent sealing elements. EPDM material provides excellent resistance against heat aging, water exposure, and repeated temperature cycling.

The sealing system is designed to maintain stable performance during long-term operation, reducing the possibility of leakage caused by thermal expansion and contraction in composite pipe systems.

Quality Control and Production Standards

NINGXING follows a complete quality management process from raw material inspection to finished product testing. Every production stage is controlled according to ISO9001:2015 requirements to ensure consistent product quality for global customers.

During manufacturing, key dimensions including fitting diameter, sealing groove position, thread accuracy, and surface condition are inspected through professional measuring equipment. Finished products are also checked for appearance quality and assembly performance before delivery.

With CE and RoHS compliance, NINGXING products meet the requirements of many international markets, especially for projects requiring reliable material safety and environmental performance.

Typical Engineering Applications

Due to its reliable connection performance and flexible installation options, aluminum plastic pipe connector products are widely used in various building and industrial pipeline systems.

Residential Water Supply Systems

In residential buildings, aluminum plastic pipe fittings are commonly used for concealed and exposed hot and cold water pipelines. They provide reliable connections between PEX-AL-PEX pipes and terminal equipment such as faucets, valves, and distribution manifolds.

Their compact structure makes them suitable for apartments, villas, hotels, and commercial buildings where space utilization and long-term reliability are important.

Underfloor Heating Projects

Underfloor heating systems require fittings that can withstand continuous temperature changes during seasonal operation. Aluminum-Plastic Pipe Fittings are widely installed between heating pipes and manifolds because of their stable sealing performance and resistance to thermal cycling.

For example, in residential floor heating projects, slide-type or press-type fittings are commonly selected to connect heating loops with distribution manifolds, ensuring efficient heat transfer and stable circulation.

Radiator and HVAC Connections

In heating and ventilation systems, these fittings provide a practical connection solution between composite pipes and radiator valves, heat exchangers, and circulation equipment.

Threaded versions are especially suitable for equipment interfaces where future maintenance or component replacement may be required.

Solar Water Heating and Heat Pump Systems

Solar water heaters and heat pump systems often experience high temperature variations between daytime operation and seasonal changes. Aluminum plastic pipe fittings provide durable connections for water inlet and outlet pipelines under these demanding conditions.

Low Pressure Gas and Industrial Applications

Certain certified Aluminum-Plastic Pipe Fitting models can also be used in low-pressure gas systems and industrial applications where approved materials and installation requirements are followed.

Frequently Asked Questions

How to choose the correct composite pipe fitting size?

The correct fitting size should always match the outside diameter and structure of the PEX-AL-PEX pipe. Common specifications include 1216, 1620, 2025, and 2632, where the first number usually represents the inner diameter and the second number represents the outer diameter of the composite pipe.

For example, a 1216 aluminum plastic pipe requires a matching 1216 fitting. Using an incorrect size may result in insufficient sealing force, loose connection, or difficulty during installation. Before purchasing, buyers should confirm the pipe specification marked on the pipe surface and select the corresponding fitting model.

What is the difference between press fitting and slide fitting for aluminum plastic pipes?

Press-type and slide-type connections are both reliable solutions for PEX-AL-PEX pipe systems, but they are suitable for different installation requirements.

Press fittings use professional pressing tools to permanently compress the external sleeve, providing fast installation speed and consistent connection quality. They are commonly used in large-scale construction projects, concealed pipelines, and professional heating installations.

Slide fittings use pipe expansion and sliding rings to create a strong mechanical connection. Because of their excellent pull-out resistance and long-term stability, they are often selected for underfloor heating systems, hot water circulation, and applications requiring repeated temperature changes.

The final selection should be based on project conditions, installation tools, maintenance requirements, and local construction standards.

Does PEX-AL-PEX pipe fitting require sealing tape during installation?

The installation method depends on the fitting structure. Press-type and slide-type fittings rely on internal sealing rings and mechanical locking structures, so sealing tape or thread sealant should not be applied to the connection body.

For threaded transition fittings used to connect valves, faucets, or metal components, PTFE tape or approved thread sealant may be required on the threaded connection area to prevent leakage.

Correct installation procedures are important because excessive sealing materials may interfere with the fitting structure and affect sealing performance.

How can buyers identify high-quality brass aluminum plastic pipe fittings?

High-quality fittings can usually be identified through material, manufacturing process, and surface quality. Premium aluminum plastic pipe fittings are generally manufactured from forged brass rather than low-quality cast materials.

Forged brass components have a denser internal structure, smoother surface finish, and better resistance to pressure and fatigue. Buyers should check whether the supplier provides material information, quality certifications, and production standards.

NINGXING uses controlled manufacturing processes with ISO9001:2015 quality management requirements, together with CE and RoHS compliance, to ensure stable product performance for international plumbing applications.

Why Choose NINGXING brass composite pipe connector

Choosing the right connection component is essential for the safety and durability of composite pipe systems. NINGXING combines brass forging technology, precision machining capability, and strict quality inspection procedures to provide reliable solutions for global plumbing customers.

Our aluminum pipe fitting products are designed for compatibility with PEX-AL-PEX pipes and support different connection requirements including press, slide, and threaded transition applications. With stable material performance, accurate dimensions, and professional manufacturing experience, NINGXING helps customers build safer and more efficient pipeline systems.

As an experienced brass fitting Manufacturer and international Supplier, NINGXING continues to provide customized OEM solutions, consistent quality control, and dependable technical support for distributors, contractors, and engineering companies worldwide.
