Quality Compression Elbow Fitting 90-Degree for Reliable Pipe Connections

NINGXING is a professional manufacturer specializing in precision machined tube fittings, hydraulic connection components and instrumentation pipeline solutions. With advanced CNC machining equipment, strict quality control systems and an independent factory production capability, we supply high-performance compression fittings for global hydraulic, pneumatic and industrial piping markets.

The Compression Elbow Fitting 90-Degree is designed for pipeline systems where space optimization and directional change are required. It provides a secure 90-degree connection between two precision tubes while maintaining excellent sealing performance under pressure, vibration and temperature variations.

Unlike welded elbows that require additional processing equipment, compression elbow fittings achieve connection through mechanical locking between the fitting body, ferrule and nut. This design allows fast installation without welding, reduces maintenance difficulty and provides a practical solution for compact hydraulic, pneumatic and instrumentation systems.

Why 90-Degree Elbow Connections Are Used

In industrial pipeline layouts, straight tube connections are not always suitable due to limited installation space, equipment arrangement or complex routing requirements. A 90-degree elbow provides an efficient way to redirect pipeline flow while keeping the overall system compact and organized.

The right-angle structure allows tubes to change direction vertically or horizontally without additional bending operations. This helps prevent tube deformation caused by manual bending and improves installation consistency, especially in equipment with multiple parallel pipelines.

The Compression Elbow Fitting 90-Degree is commonly selected for applications requiring accurate positioning, repeatable installation and reliable sealing performance, including hydraulic equipment, laboratory instruments, automation systems and industrial control pipelines.

Structure And Connection Design

Three-Part Sealing System

The standard structure consists of a fitting body, ferrule and locking nut. During installation, the tube is inserted into the fitting port and the nut is tightened. The ferrule moves forward under axial pressure, creating a mechanical grip on the tube surface while the outer cone of the ferrule matches the internal cone of the fitting body.

This dual-contact sealing mechanism provides stable sealing performance without welding or additional heat treatment. The connection can effectively resist pressure fluctuation and vibration commonly found in hydraulic and industrial systems.

Right Angle Flow Direction

The 90-degree configuration changes the pipeline direction while maintaining a compact installation footprint. Compared with traditional welded elbows, precision-machined compression elbows offer better dimensional consistency and easier alignment during assembly.

For equipment manufacturers, accurate centerline dimensions are especially important because multiple tube connections often need to match fixed ports, valves or instruments. A precisely manufactured elbow reduces installation stress caused by incorrect positioning.

Main Product Categories

Equal Tube Size Elbow

Equal size models are designed for connecting two tubes with the same outside diameter. They are widely used in standard hydraulic and instrumentation circuits where the flow path requires only directional conversion without changing tube size.

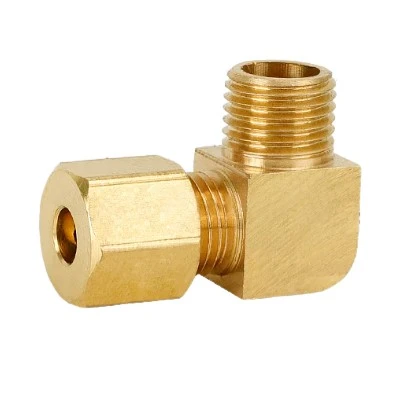

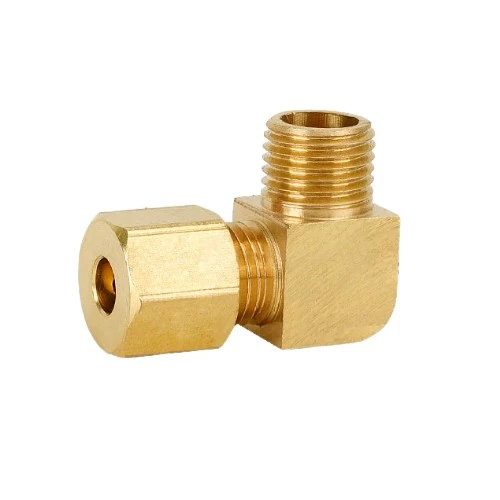

Reducing Elbow

Reducing models combine direction change and diameter transition in one component. They allow a larger tube to connect with a smaller tube while saving installation space and reducing the number of additional adapters required.

Single Ferrule Type

Single ferrule designs provide a simple and economical connection structure. They are suitable for general industrial applications where moderate pressure resistance and convenient installation are required.

Double Ferrule Type

Double ferrule designs provide enhanced gripping and sealing performance through a front and rear ferrule structure. They are commonly used in instrumentation systems, high-pressure hydraulic applications and environments where leakage prevention is critical.

Material Selection And Performance

Stainless Steel Options

For demanding industrial environments, NINGXING provides stainless steel options including 304, 316 and 316L materials. Stainless steel construction offers excellent corrosion resistance and mechanical stability, making it suitable for systems handling water, oil, gas and various chemical media.

316L stainless steel is particularly suitable for applications requiring stronger resistance against chloride corrosion and chemical exposure, such as offshore equipment, chemical processing systems and laboratory instrumentation pipelines.

Carbon Steel And Alloy Materials

For general hydraulic and pneumatic applications, carbon steel materials provide a cost-effective solution with high mechanical strength. For special operating conditions, alloy materials such as Alloy 625 and Monel can be selected to improve resistance against extreme temperatures and corrosive environments.

Material selection depends on factors including working pressure, operating temperature, fluid characteristics and environmental conditions. NINGXING supports customized material solutions according to customer engineering requirements.

Technical Specifications

Size Range And Pressure Rating

The product range covers precision tubes with outside diameters from Φ4mm to Φ42mm, including commonly used sizes such as Φ6, Φ8, Φ10, Φ12, Φ14, Φ16, Φ18, Φ20 and Φ22.

Standard working pressure ranges from 2.5MPa to 40MPa depending on tube size, material selection and ferrule structure. Double ferrule versions are suitable for higher pressure applications where improved sealing reliability is required.

Thread Standards

The connection interfaces can be manufactured according to different international thread standards, including G, R, PT, NPT, ZG and M threads. This allows the fittings to match equipment and pipeline systems used in different global markets.

Temperature Capability

According to material selection, the fittings can operate under temperatures ranging from low-temperature applications to high-temperature environments up to approximately 450℃. Stainless steel versions provide stable performance under thermal cycling conditions.

Manufacturing Quality Control

Precision Machining Process

NINGXING applies CNC machining technology to control critical dimensions including cone angles, thread accuracy, ferrule contact surfaces and sealing areas. Precise machining ensures consistent assembly performance between different batches.

Each production stage, from raw material inspection and machining to surface treatment and final assembly testing, follows strict quality management procedures. This manufacturing process helps ensure reliable performance for industrial customers requiring long-term supply stability.

Inspection Standards

Before shipment, products are inspected according to dimensional accuracy, thread compatibility, surface quality and sealing performance requirements. NINGXING products comply with ISO9001:2015 quality management requirements and meet CE and RoHS standards for international markets.

Application Fields

Hydraulic Equipment

The fittings are widely used in hydraulic systems of machine tools, construction machinery and automation equipment. Their compact 90-degree design helps optimize hydraulic pipeline routing while maintaining pressure resistance and vibration stability.

Typical applications include hydraulic control circuits, actuator connections, pressure monitoring points and compact hydraulic manifolds.

Instrumentation Systems

In process control and analytical equipment, accurate tube routing is essential for stable measurement performance. The Compression Elbow Fitting 90-Degree provides reliable directional connection for sampling lines, instrument air systems and control pipelines.

Common applications include gas chromatography systems, chemical analysis equipment, pharmaceutical process instruments and laboratory testing systems.

Petrochemical Industry

Petroleum, natural gas and chemical processing facilities often require compact and leak-resistant tube connection solutions. Compression elbow fittings are used in instrument tubing, sampling systems and control pipelines where welding is inconvenient or restricted.

Examples include refinery instrument air lines, natural gas station control systems and chemical equipment monitoring pipelines.

Energy And Transportation

The fittings are also applied in power plants, marine systems and new energy equipment. Typical uses include lubrication systems, cooling circuits, fuel pipelines and compressed gas systems requiring reliable tube direction changes.

For hydrogen energy and fuel cell equipment, specially selected materials and sealing structures can be provided according to application requirements.

How To Select The Right Model

Consider Tube Size First

The first step when selecting a Compression Elbow Fitting 90-Degree is confirming the outside diameter of the tube. The fitting size must match the tube specification to ensure proper ferrule engagement and reliable sealing.

Incorrect size matching may result in insufficient tube gripping force or improper sealing performance. Therefore, buyers should confirm tube diameter, wall thickness and material grade before placing orders.

Match Pressure And Media Conditions

Different operating environments require different fitting structures and materials. For low-pressure pneumatic systems, standard configurations may meet requirements, while high-pressure hydraulic systems or corrosive media applications require stronger materials and enhanced sealing designs.

When selecting fittings for oil, gas, chemical fluids or high-temperature applications, users should consider corrosion resistance, pressure rating and temperature limitations together instead of selecting only by size.

Check Installation Space

The 90-degree design is mainly selected for compact pipeline arrangements where straight connections cannot meet layout requirements. Before installation, engineers should confirm bending direction, tube routing distance and maintenance accessibility.

Proper selection helps avoid excessive tube stress, unnecessary adapters and complicated pipeline structures, improving overall system reliability.

Common Questions

Q1: What is the difference between a 90-Degree compression elbow and a straight compression fitting?

A straight compression fitting is mainly used for connecting two tubes in the same direction, while a Compression Elbow Fitting 90-Degree changes the pipeline direction by 90-Degrees.

Straight fittings are suitable for linear extension or tube connection, while elbow fittings are designed for equipment layouts where pipes need to turn around corners or connect vertically positioned ports. The choice depends on the required pipeline routing design.

Q2: Can compression elbow fittings be reused after removal?

Compression elbow fittings can generally be reused when the fitting body, threads, ferrule and tube surface remain in good condition. During maintenance, the connection should be carefully disassembled and all sealing components should be inspected before reinstallation.

For high-pressure systems or critical applications, replacing the ferrule after repeated disassembly is recommended to maintain optimal sealing performance.

Q3: What is the correct installation method for compression elbow fittings?

During installation, the tube should first be inserted completely into the fitting body. The nut is then tightened by hand until resistance increases, followed by tightening with a wrench according to the recommended installation specification.

The tube must remain aligned during tightening. Excessive tightening should be avoided because it may damage the ferrule or deform the tube surface. Proper installation ensures the ferrule forms a stable mechanical seal.

Q4: Should stainless steel or carbon steel material be selected?

The choice depends on the working environment. Stainless steel versions are recommended for applications requiring corrosion resistance, cleanliness or exposure to chemical media. Carbon steel versions are suitable for general hydraulic and pneumatic applications where cost efficiency and mechanical strength are important.

For special conditions such as seawater, hydrogen systems or aggressive chemical environments, NINGXING can provide customized alloy material solutions according to customer requirements.

Q5: Why choose NINGXING compression elbow fittings?

NINGXING combines precision machining capability, strict inspection procedures and customized manufacturing experience to provide reliable tube connection solutions for global industrial customers.

With ISO9001:2015 certification, CE and RoHS compliance, NINGXING supports OEM and customized production services, including special materials, thread standards, dimensions and packaging requirements for different international markets.

Reliable Tube Connection Solution

As an experienced manufacturer and supplier of industrial tube fittings, NINGXING continuously focuses on improving product accuracy, sealing reliability and manufacturing consistency. The Compression Elbow Fitting 90-Degree provides an efficient solution for pipeline direction changes in hydraulic, pneumatic, instrumentation and industrial applications.

Through advanced production technology, professional quality control and flexible customization capability, NINGXING helps global customers build safer and more efficient pipeline systems.
