Brass Thickened High Pressure Marine Elbow Reducer 90-Degree Male Thread

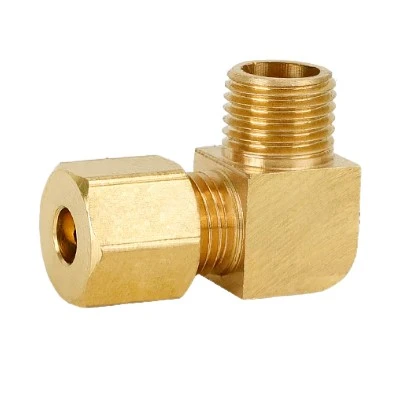

NINGXING Brass Thickened High Pressure Marine Elbow Reducer 90-Degree Male Thread is designed for piping systems that require a 90-degree direction change and connection between different pipe sizes. The fitting combines an elbow, reducing function and male-threaded connection in one compact component.

Made from quality brass bar through precision forging and CNC machining, the thickened body provides additional structural strength for gas piping, marine equipment, industrial machinery and compatible fluid systems.

Product Features

90-Degree Reducing Design

The 90-degree structure changes pipe direction while the reducing section connects different pipe sizes. Combining both functions can reduce the need for a separate elbow and reducer, making the piping layout more compact.

Reinforced Brass Body

The thickened brass construction provides additional material around the elbow and threaded areas. Compared with ordinary thin-wall fittings, it offers greater resistance to deformation and mechanical impact under suitable operating conditions.

Male Thread Connection

The threaded end can be manufactured for compatible NPT, BSP and other thread requirements. Buyers should confirm the exact thread standard and size before ordering, especially when connecting imported valves or gas equipment.

Product Comparison

Standard Elbow vs Reducing Elbow

A standard elbow mainly provides a change in direction. When the connected pipes have different sizes, an additional reducer is normally required.

The NINGXING reducing configuration combines the two functions into one fitting, which can simplify installation and reduce the number of connection points.

NINGXING vs Low-Cost Alternatives

Low-cost fittings may differ in brass grade, wall thickness, forming method, machining accuracy and inspection procedures. For B2B buyers, these differences can affect batch consistency and installation compatibility.

NINGXING uses controlled brass material selection, forging, CNC machining and final inspection to maintain consistent dimensions and connection quality across production batches.

Manufacturing Quality

Forged Brass Construction

The brass material is heated within the required forging range of approximately 480°C–750°C and formed under pressure. Forging helps reduce internal defects such as porosity and shrinkage cavities compared with conventional casting.

The forged body is then CNC machined to produce the required thread, connection dimensions and sealing surfaces.

Inspection Before Shipment

Production inspection covers material, critical dimensions, threads and appearance. Finished fittings undergo pressure and sealing checks according to applicable production requirements.

For gas applications, factory inspection does not replace site commissioning or leakage testing required by local regulations.

Application Cases

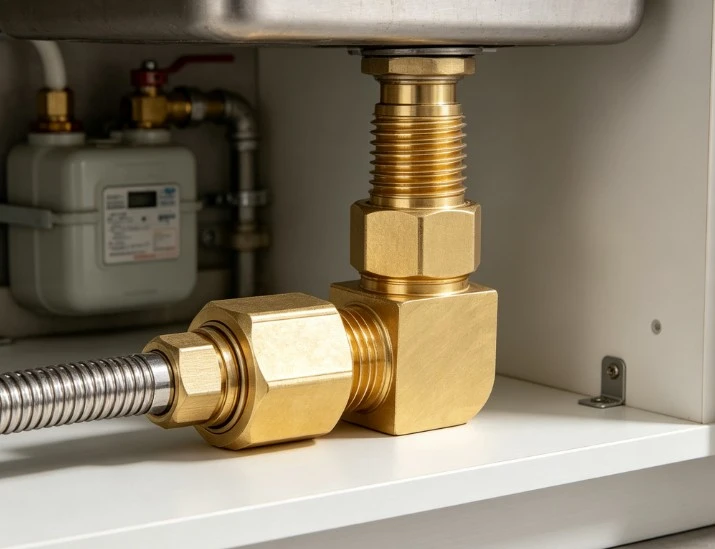

Residential Gas Pipe Modification

Mr. Zhang was renovating his kitchen and needed to connect a new built-in gas stove to an existing natural gas pipeline. The appliance connection was vertically offset and the two connection sizes were different.

The Brass Thickened High Pressure Marine Elbow Reducer 90-Degree Male Thread allowed the installer to route the pipe around the cabinet obstruction while adapting the connection from a 4-point gas pipe to the stove's 3-point interface, avoiding complete pipeline rerouting.

Commercial Kitchen Equipment

A restaurant chain purchased imported gas appliances whose connection specifications differed from the existing gas piping system.

The engineering team used customized 90-degree reducing fittings to accommodate the different thread and connection requirements, helping the appliances enter operation without extensive pipeline modification.

Industrial Gas Boiler Maintenance

During routine maintenance at a factory, a 90-degree connection on a gas boiler was found to have a small crack and required replacement.

The existing pipeline used a special connection size that was unavailable as a standard fitting. Based on the customer's requirements, the NINGXING engineering team produced a customized reinforced reducing elbow and completed delivery within two days.

Older Residential Community Renovation

During a gas pipeline upgrade project in an older residential community in Hangzhou, many households had compatibility problems between the new pipeline and existing stove connections.

The contractor purchased reducing elbow fittings in bulk to accommodate different connection requirements, helping reduce pipeline modification work and shorten the renovation schedule.

Size and Thread Data

The standard size range covers 1/8 inch to 4 inches, with nominal sizes from DN6 to DN100.

Non-standard sizes, reducing combinations, thread specifications and wall thicknesses can be customized according to drawings, samples or technical requirements.

Operating Conditions

Media and Pressure

The Brass Thickened High Pressure Marine Elbow Reducer 90-Degree Male Thread can be used for compatible natural gas, LPG, air, water and oil applications. The standard supplied specification provides a nominal pressure of 1.0 MPa / 10 bar.

Higher-pressure configurations can be evaluated through customized wall thickness, thread geometry and fitting design. The final pressure rating should be confirmed according to the specific configuration.

Temperature

The supplied specification indicates a typical operating range of approximately -53°C to +121°C, with applicable configurations reaching up to 150°C.

The exact temperature rating should be confirmed for applications operating close to these limits.

Installation

Thread and Connection Check

Before installation, confirm the thread type, nominal size and mating component. The fitting should be checked for damaged threads, cracks or visible deformation.

For tapered threaded connections, suitable PTFE tape or thread sealant can be applied according to the application. Excessive tightening should be avoided because it may damage the thread or fitting.

After installation, gas connections should be checked for leakage using an appropriate detection method and commissioned according to applicable local regulations.

Custom Manufacturing

OEM Specifications

NINGXING supports customized production based on drawings, samples or technical specifications. Non-standard threads, reducing combinations, special wall thicknesses and surface treatments can be evaluated.

Natural brass and nickel-plated finishes are available according to project requirements.

Certifications

Quality Management

NINGXING operates under an ISO 9001:2015 quality management system, covering material procurement, production and inspection procedures.

CE and RoHS

Applicable product configurations are available with CE and RoHS certifications. Certification scope should be confirmed according to the specific product and destination market.

FAQ

What Media Can Be Used?

The Brass Thickened High Pressure Marine Elbow Reducer 90-Degree Male Thread can be used for compatible natural gas, LPG, air, water and oil applications. Actual suitability depends on the medium, pressure, temperature and local regulations.

What Is the Difference from a Standard Elbow?

A standard elbow changes pipe direction, while the reducing design also connects different pipe sizes. This can eliminate a separate reducer in suitable installations.

Why Choose a Thickened Body?

The reinforced wall provides additional material around the fitting body and threaded areas, improving resistance to deformation and mechanical impact compared with a thinner-wall design.

Can It Be Used for Marine Applications?

Yes. It can be considered for compatible marine piping and equipment connections. Material, pressure, corrosion protection and thread requirements should be confirmed according to the marine environment.

Can the Product Be Customized?

Yes. NINGXING supports customized dimensions, thread specifications, wall thicknesses, reducing combinations and surface treatments.

How Can I Check an M18 Interface?

An outside-thread diameter can be measured with a caliper. A measurement around 17.5–18 mm may indicate an M18 connection, but the thread pitch should also be verified.

What Is the Standard Pressure?

The supplied standard specification is 1.0 MPa / 10 bar. Higher-pressure versions require separate technical evaluation and confirmation.
