Purchase Premium Brass 90-Degree Elbow Fitting for Reliable Pipe Connections at Competitive Prices

In modern piping systems, connection direction and installation space are two critical factors affecting system layout efficiency. Brass 90-Degree Elbow Fitting is designed to solve pipe direction changes where a straight connection cannot meet installation requirements. By creating a right-angle transition between two threaded ports, it allows pipelines to bypass obstacles, optimize space utilization and achieve a clean routing structure without additional bending operations.

Unlike ordinary pipe connectors that mainly focus on extending or converting interfaces, this type of elbow fitting focuses on directional adjustment while maintaining reliable sealing performance. It is widely used in residential plumbing, HVAC systems, industrial fluid pipelines, equipment connections and other applications where a compact 90-degree turning solution is required.

Structure Classification

According to connection method, thread configuration and installation requirements, Brass 90-Degree Elbow Fitting can be divided into several structural designs. Different structures allow buyers to select suitable solutions according to pipeline layout, equipment interface and operating environment.

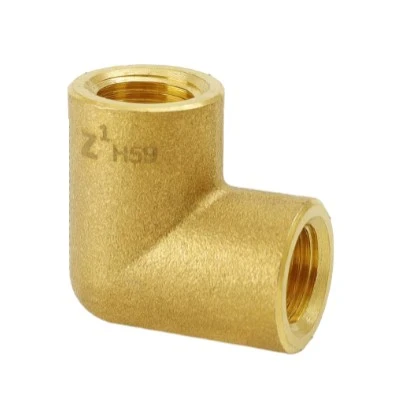

Female Thread Elbow

Female thread elbow is one of the most common configurations. Both ends are machined with internal threads and are designed to connect male threaded pipes, valves or other threaded components. This structure provides a compact installation method and is frequently used in water supply systems, sanitary equipment connections and industrial pipelines.

For example, a wall-mounted water outlet can use a female threaded elbow to change the direction of the pipeline while connecting with a faucet, shower valve or angle valve through an external thread interface.

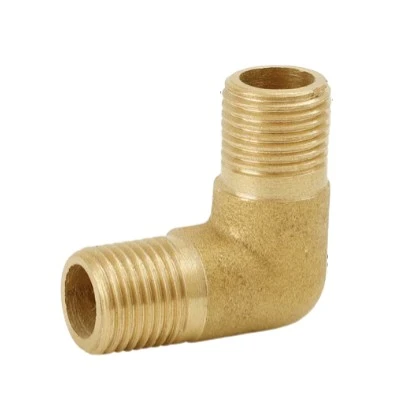

Male Thread Elbow

Male thread elbow adopts external threads on one or both connection ends. It is mainly applied where the elbow needs to directly enter female threaded components such as valves, manifolds or equipment ports.

This design reduces the number of additional adapters required during installation and is suitable for compact piping structures where installation space is limited.

Male Female Elbow

Male female elbow combines an external thread port and an internal thread port in one body. This mixed thread structure allows different connection directions to be achieved without adding extra conversion fittings.

It is commonly selected for applications where one side connects to a concealed pipe fitting while the other side connects to a visible equipment component. The integrated design helps reduce connection points and lowers potential leakage risks.

Reducing Elbow

Reducing elbow combines direction change and diameter conversion functions. The two threaded ends have different nominal sizes, allowing the pipeline to change direction while adapting between different pipe diameters.

For example, a 3/4 inch × 1/2 inch reducing elbow can connect a larger main pipe with a smaller branch line while maintaining a 90-degree turning layout. This structure helps save installation space compared with using a standard elbow together with a separate reducer.

Extended Thread Elbow

Extended thread elbow is designed with longer threaded sections compared with standard models. It is suitable for applications requiring deeper thread engagement, thicker wall installation plates or special equipment connection requirements.

The longer thread length improves installation flexibility and provides additional adjustment range during pipeline assembly.

Thread And Material Options

The performance of a threaded elbow depends heavily on material quality, thread accuracy and surface protection. NINGXING controls each manufacturing stage from raw material selection to final inspection to ensure stable product consistency.

The standard material is HPb59-1 forged brass, containing approximately 57%-60% copper with controlled lead content. For international markets, CW617N European standard brass and RoHS-compliant low lead brass options are also available according to application requirements.

Thread standards include BSP, G thread and NPT thread systems. The available size range generally covers 1/8 inch to 2 inch, supporting different regional pipe connection requirements. Internal thread accuracy reaches 6H grade while external thread accuracy reaches 6g grade, and every batch is checked through thread gauges before shipment.

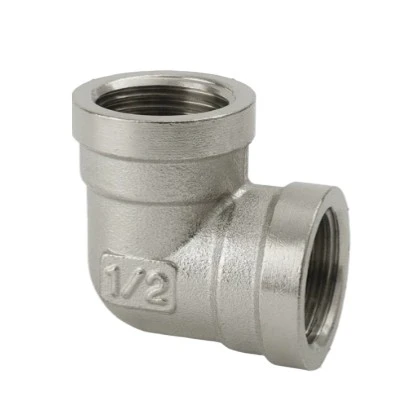

Surface treatment options include natural brass finishing, nickel plating and other corrosion-resistant treatments. Nickel-plated versions provide improved oxidation resistance and a clean silver appearance, making them suitable for humid environments such as bathrooms, kitchens and equipment rooms.

Manufacturing Process

The reliability of a brass elbow fitting is closely related to its manufacturing technology. NINGXING integrates brass forging, CNC machining, thread processing and surface treatment technologies to ensure stable dimensions, mechanical strength and long-term sealing performance.

Forged Brass Body Production

High-quality brass raw materials are heated and forged under controlled temperature conditions to form the basic elbow structure. Compared with casting processes, forging improves the internal density of the material and reduces common defects such as pores, shrinkage cavities and internal cracks.

During pipeline operation, fittings may experience pressure fluctuations, vibration and thermal expansion caused by temperature changes. The dense metal structure produced through forging provides better resistance against mechanical stress and helps extend service life in demanding environments.

Precision Thread Machining

Thread quality directly affects installation efficiency and sealing reliability. NINGXING uses precision CNC machining equipment to process internal and external threads, ensuring accurate thread profiles, smooth surfaces and stable dimensional tolerance.

Each connection end is inspected with professional thread gauges before shipment. This inspection process helps prevent common problems such as difficult installation, loose connection, thread mismatch and leakage caused by inaccurate machining.

Surface Protection Treatment

Different application environments require different surface protection solutions. NINGXING provides multiple finishing options according to customer requirements, including natural brass treatment and nickel-plated surfaces.

For humid environments, nickel plating can improve corrosion resistance and maintain a cleaner appearance. For general indoor plumbing applications, natural brass finishing provides a practical and economical solution while maintaining the original characteristics of brass material.

Performance Factors

When selecting a threaded elbow for a piping project, buyers usually focus on several factors including pressure capability, sealing stability, flow performance and compatibility with existing components.

Pressure Resistance

A reliable Brass 90-Degree Elbow Fitting must maintain structural stability under continuous working pressure and sudden pressure changes. NINGXING forged brass products provide high mechanical strength, with tensile strength of forged brass generally reaching ≥370MPa.

The compact forged structure allows the fitting to withstand pressure fluctuations caused by water hammer, pump startup and temperature changes, making it suitable for residential and industrial pipeline systems.

Sealing Reliability

A 90-degree turning connection creates additional stress at the joint area, so thread sealing performance is especially important. Accurate thread machining combined with appropriate sealing materials such as PTFE tape or liquid thread sealant helps achieve reliable leak prevention.

For special applications, NINGXING can provide customized structures with sealing grooves or other designs to improve connection stability under specific operating conditions.

Flow Direction Control

The internal flow path design influences pressure loss and turbulence during operation. Compared with rough internal surfaces or poorly formed fittings, precision-machined brass elbows provide smoother passages for fluid movement.

In systems where pressure loss is a concern, such as circulation water pipelines or equipment cooling systems, selecting suitable elbow angles and optimizing pipeline layout can help improve overall efficiency.

Dimensional Compatibility

Standardized dimensions are essential for international projects. NINGXING Brass 90-Degree Elbow Fitting products support common BSP, G and NPT thread standards, allowing compatibility with different regional pipe systems.

The standardized production process ensures that fittings from different batches maintain consistent dimensions, reducing installation problems during large-scale engineering projects.

Selection Guide

Choosing the correct elbow requires consideration of connection method, pipe size, installation environment and working conditions. Professional buyers usually evaluate the following aspects before placing bulk orders.

Connection Method Selection

For connecting two male threaded components, female thread elbows are generally selected. When connecting equipment ports with internal threads, male thread designs may be more suitable. For mixed connection requirements, male female structures can reduce the need for additional adapters.

Size Matching

The nominal diameter of the elbow should match the connected pipe or equipment interface. Incorrect size selection may cause installation difficulties, increased pressure loss or insufficient sealing performance.

Common sizes include 1/2 inch, 3/4 inch, 1 inch and other specifications widely used in plumbing and industrial applications. Customized combinations are also available for special projects.

Application Environment

Different environments require different material and surface treatment options. Indoor water systems generally use standard brass products, while coastal areas, humid rooms or outdoor installations may require enhanced corrosion protection.

For gas, industrial chemicals or special fluids, buyers should confirm material compatibility, certification requirements and operating conditions before selecting the appropriate model.

Customized Requirements

Besides standard specifications, NINGXING supports customized solutions including special thread standards, different angles, extended connection lengths and non-standard dimensions.

With professional production experience and flexible manufacturing capability, NINGXING helps global customers develop suitable brass connection components for OEM projects and engineering applications.

Application Areas

Because of its compact structure and reliable direction-changing capability, Brass 90-Degree Elbow Fitting is widely used in different piping systems where space optimization and stable connection are required.

Residential Plumbing Systems

In household water supply systems, elbows are commonly installed behind walls, under sinks, inside bathrooms and around kitchen equipment. Typical applications include connecting faucets, angle valves, water heaters and concealed pipe outlets.

For example, a shower installation may require a 90-degree turning connection between the wall-embedded water pipe and the external shower valve to achieve proper positioning and appearance.

HVAC And Heating Systems

Heating and cooling systems often require pipeline direction adjustments because of equipment layout and installation space limitations. Brass elbows are used for connecting circulation pipes, valves, heat exchangers and terminal equipment.

Industrial Equipment Connections

In industrial environments, these fittings are applied in hydraulic lines, pneumatic systems, compressed air pipelines and equipment cooling circuits where compact right-angle connections are required.

Building And Fire Protection

Building projects use threaded elbows for pipeline routing around structural obstacles, equipment interfaces and terminal connections. Certain certified models may also be selected for specific fire protection or gas-related applications according to local regulations.

Frequently Asked Questions

How to choose between a standard elbow and a reducing elbow?

The selection depends on whether the pipeline requires only direction adjustment or both direction change and diameter conversion. A standard elbow is suitable when the connected pipes have the same nominal size and only need a 90-degree routing change.

A reducing elbow should be selected when the pipeline needs to change diameter while turning direction. For example, a 3/4 inch × 1/2 inch reducing elbow can directly connect a larger pipe section with a smaller branch line, eliminating the need for an additional reducer and reducing the number of connection points.

During engineering design, buyers should confirm the actual flow requirement, pipe size and equipment interface dimensions before selecting the appropriate specification.

What causes leakage after installing a threaded elbow?

Leakage after installation is usually related to thread mismatch, insufficient sealing, excessive tightening or improper installation methods. Common problems include using incompatible thread standards, such as mixing BSP and NPT connections, or failing to apply suitable sealing materials.

Before installation, the thread type and size should be confirmed carefully. The external thread should be wrapped with PTFE tape or coated with liquid sealant according to the application requirement. The fitting should then be tightened with proper torque instead of excessive force, which may damage the thread or deform the fitting body.

Why choose forged brass elbows instead of cast brass elbows?

The main difference is the internal material structure. Forged brass products are produced through metal forming processes that create a denser structure with fewer internal defects. This provides better mechanical strength and resistance to vibration and pressure changes.

Cast brass fittings may contain internal defects such as pores or shrinkage cavities if the casting process is not properly controlled. For systems requiring long-term reliability, forged brass components are often preferred because of their improved durability and consistency.

Can a 90-Degree elbow be used for hot water and heating systems?

Yes, suitable brass elbows can be used in hot water and heating applications when the material, pressure rating and temperature requirements are within the specified operating range.

NINGXING brass fittings are designed for water, oil, gas and other compatible weakly corrosive media, with typical operating temperature ranges from -20℃ to 120℃ depending on specification and application conditions.

For heating systems, installation should consider thermal expansion, pipeline support and proper sealing methods to avoid additional stress on the threaded connection.

How can buyers verify the quality of a brass elbow supplier?

When purchasing brass pipe fittings in bulk, buyers should evaluate manufacturing capability, quality management system, material traceability and inspection procedures.

A professional supplier should provide information about raw material standards, production processes, thread inspection methods and relevant certifications. NINGXING operates under ISO9001:2015 quality management requirements and provides brass fitting solutions supported by professional manufacturing and inspection systems.

Why Choose NINGXING

NINGXING focuses on providing reliable brass connection solutions for global plumbing, industrial and equipment manufacturers. With integrated capabilities covering brass forging, CNC machining and surface treatment, NINGXING can support both standard products and customized OEM requirements.

Every Brass 90-Degree Elbow Fitting is manufactured with attention to material quality, dimensional accuracy and connection reliability. Through strict production control and inspection procedures, NINGXING helps customers reduce installation risks and improve the long-term stability of piping systems.

With ISO9001:2015 quality certification, CE compliance and RoHS certification support, NINGXING continues to supply dependable brass fittings for international markets, including plumbing distributors, engineering contractors and industrial equipment manufacturers.
