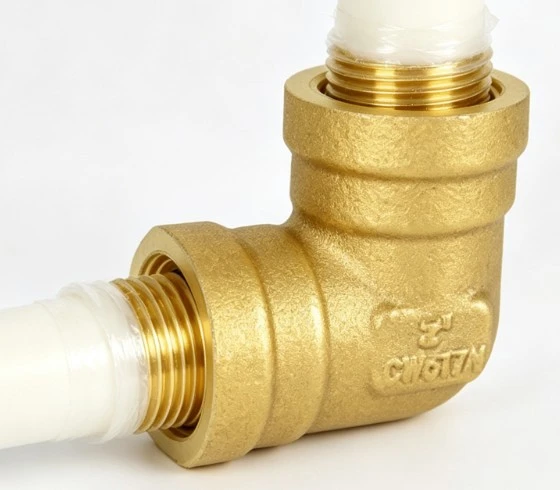

Brass 90-Degree Elbow Water Pipe Fitting

The NINGXING Brass 90-Degree Elbow Water Pipe Fitting is designed to change pipeline direction by 90° while providing a compact threaded connection. Made from brass through forging and CNC machining, it features consistent thread dimensions, smooth sealing surfaces and good corrosion resistance for compatible piping applications.

Available in BSPP, BSPT and NPT thread options, the fitting can be supplied in standard or customized sizes. NINGXING manufactures brass fittings under an ISO 9001:2015 quality management system, with CE and RoHS compliance available according to the applicable product configuration.

Material and Manufacturing

The Brass 90-Degree Elbow Water Pipe Fitting uses brass suitable for precision machining and general fluid connection applications. Forging provides a relatively dense material structure, while CNC machining controls thread dimensions, connection geometry and sealing surfaces.

Each production batch is subject to dimensional and sealing inspections. Customized thread standards, sizes and surface treatments can also be supplied according to drawings or samples.

Application Limits

The Brass 90-Degree Elbow Water Pipe Fitting is mainly intended for compatible water, air and selected non-corrosive fluids. Selection should consider the brass grade, thread standard, fitting size, sealing method, medium, temperature and pressure together rather than relying on the fitting material alone.

Pressure ratings are product-specific. A value such as ≤1.0 MPa may be used as a normal-temperature reference for a specified configuration, but it should not be treated as a universal rating for every size or connection type. Allowable pressure can decrease as operating temperature rises, and continuous pressure cycling, vibration or thermal shock may further affect service performance.

For gas applications, a standard brass fitting should not automatically be considered suitable for all natural gas, LPG or other fuel-gas installations. Required thread standards, sealing materials, certifications and local regulations must be confirmed before use.

RoHS compliance controls certain restricted substances but does not equal potable-water approval, NSF certification or food-contact certification. Separate certification is required when such approval is necessary.

Selection Guide

The correct configuration should be selected according to the pipeline layout, connection standard and operating conditions.

Typical Applications

1. Residential Water Systems

In kitchens, bathrooms and home water-pipe renovation, a 90° fitting can help route pipes through restricted spaces. One customer used the fitting during a kitchen water-system renovation and reported no leakage during a 0.8 MPa pressure test lasting 30 minutes.

2. Commercial and Industrial Piping

The Brass 90-Degree Elbow Water Pipe Fitting can be used in general water supply, equipment piping and compatible industrial fluid systems where a compact directional connection is required. NINGXING supports standard supply as well as OEM and customized requirements.

3. HVAC and Equipment

The fitting can be applied to compatible HVAC, cooling and equipment connections. Before selection, users should confirm the actual medium, operating temperature, pressure and thread specification.

Available Sizes

Dimensions are for reference. Actual thread dimensions depend on the applicable standard and product configuration.

Installation Notes

Before installation, verify the thread type, size, alignment and sealing method. Clean the threads and sealing surfaces before assembly and use a suitable PTFE tape or thread sealant when required.

Tighten according to the applicable torque requirements. Do not use excessive tightening to compensate for damaged threads, misalignment or an unsuitable sealing surface. If leakage occurs, inspect the connection and correct the underlying problem instead of simply increasing tightening force.

FAQ

What thread standards are available?

NINGXING provides BSPP, BSPT, NPT and customized thread configurations according to customer requirements.

Can it be used with hot water?

Yes, where the selected configuration is rated for the actual temperature and pressure. Pressure capability should be reassessed at elevated temperatures.

Can it be used for gas?

Only when the complete fitting configuration meets the requirements of the specific gas system. Brass construction alone does not establish gas-system approval.

Is RoHS enough for drinking water?

No. RoHS and drinking-water certification address different requirements. Potable-water applications require separate material and product approval where applicable.

Can special sizes be customized?

Yes. NINGXING supports customized sizes, thread standards, lengths and surface treatments based on drawings, samples or application specifications.

NINGXING Supply

The Brass 90-Degree Elbow Water Pipe Fitting is designed for reliable directional changes in compatible threaded piping systems. NINGXING combines brass material selection, CNC machining and quality inspection to supply standard and customized fittings for residential, commercial and industrial applications.

For accurate selection, provide the connection size, thread standard, medium, working pressure and operating temperature when requesting a quotation.
