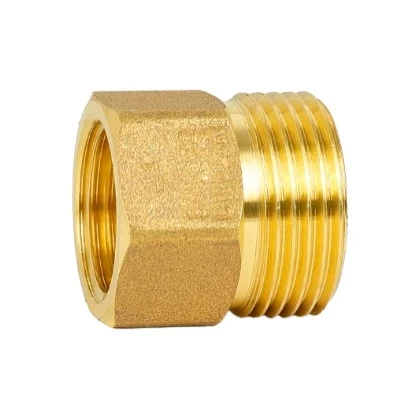

Factory Direct Brass Male-Female Thread Straight Connector for Reliable Pipeline Connections

Pipeline installation often involves connecting components with different thread directions, sizes or equipment interfaces. NINGXING Brass Male-Female Thread Straight Connector is designed to solve these connection challenges by combining a male thread and a female thread into one compact brass adapter. It provides a practical transition solution between valves, pipes, instruments and other threaded components in plumbing and industrial systems.

As a professional brass fitting Manufacturer, NINGXING integrates brass forging, CNC precision machining and surface treatment technologies to produce reliable threaded connection components. With a complete production Factory and strict quality inspection system, our products meet international requirements under ISO9001:2015 quality management standards, with CE and RoHS certifications available for different markets.

Connection Structure Options

The design of this connector focuses on thread compatibility and installation flexibility. One end works as a male threaded connection, which can be installed into female threaded components, while the opposite female thread accepts male threaded parts. This structure creates a reliable transition between different pipeline elements.

Equal Size Combination

The male thread and female thread have the same nominal size. This type is mainly used when the connection direction needs to be converted without changing the pipeline diameter, such as converting a female port into a male connection point.

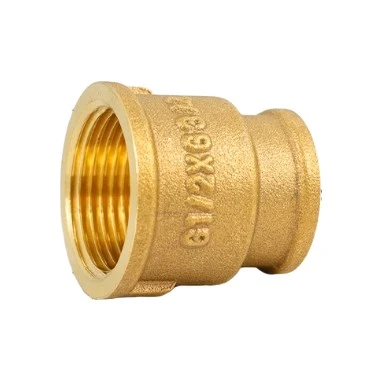

Reducing Combination

The male and female thread sizes are different, allowing the connector to complete both thread conversion and diameter adjustment. This design is commonly selected when equipment interfaces and pipeline sizes do not match.

Hex Shoulder Design

A hexagonal shoulder is added between the two threaded sections to provide a stable wrench position. This structure improves installation efficiency and prevents damage caused by directly gripping threaded surfaces during assembly.

Extended Thread Design

The extended version provides additional thread engagement length for applications requiring deeper installation positions or stronger mechanical fixing. It is suitable for special equipment interfaces and customized pipeline layouts.

Material and Production Control

NINGXING Brass Male-Female Thread Straight Connector is mainly manufactured from high-quality brass materials such as HPb59-1 and CW617N. For export markets requiring environmental compliance, low-lead brass materials meeting RoHS requirements are also available.

The brass body is produced through precision forging technology, which improves material density and mechanical strength. Compared with ordinary cast fittings, forged brass connectors provide better resistance against cracking, pressure fluctuations and long-term mechanical stress.

Thread processing is completed through CNC machining to ensure accurate thread profile, smooth surface finish and stable fitting performance. External threads and internal threads are inspected separately according to international thread standards, including BSP, G and NPT options.

Surface treatment options include natural brass finish, nickel plating and customized anti-corrosion treatments. Nickel-plated models provide improved corrosion resistance and a clean appearance, making them suitable for humid environments and visible installations.

Performance Factors for Selection

Thread Compatibility

Correct thread matching is the first consideration when selecting a connector. NINGXING supports multiple thread standards including BSP, G and NPT, helping customers match different regional pipeline systems. Before purchase, users should confirm thread type, size and sealing method to avoid installation problems.

Pressure Capability

The working pressure depends on material grade, thread size and system conditions. Standard brass models are widely used in water, oil, air and other common fluid applications, with pressure performance suitable for residential plumbing, commercial piping and industrial auxiliary systems.

Sealing Method

The connector itself provides mechanical connection, while sealing performance is achieved through suitable sealing materials. PTFE tape, liquid thread sealant or sealing gaskets can be selected according to the application environment and medium requirements.

Dimensional Accuracy

Accurate machining tolerance ensures smooth assembly between male and female threads. NINGXING applies strict inspection procedures to control thread dimensions, helping distributors and engineering customers achieve consistent installation quality.

Engineering Benefits

Compact Interface Conversion

The biggest advantage of NINGXING Brass Male-Female Thread Straight Connector is its integrated conversion structure. By combining male and female threads into one component, it eliminates the need for multiple adapters and reduces the overall connection length. This compact design is especially valuable in equipment areas where installation space is limited.

Stable Mechanical Connection

The forged brass body provides excellent mechanical strength and dimensional stability. During installation and long-term operation, the connector maintains reliable thread engagement and resists deformation caused by vibration, pressure changes and repeated maintenance operations.

Reduced Leakage Points

Traditional pipeline conversion may require several fittings connected together, increasing the number of sealing positions. Using a single Brass Male Female Thread Straight Connector reduces unnecessary connection points, helping improve system reliability and simplify maintenance.

Easy Installation and Maintenance

The threaded design allows installation with common hand tools without welding or special equipment. The hex shoulder option provides additional convenience for tightening and removal, making it suitable for both new installations and pipeline repair projects.

Flexible OEM Solutions

NINGXING supports customized production according to customer requirements, including different thread combinations, special dimensions, extended lengths and surface finishes. This flexibility allows distributors, wholesalers and engineering companies to obtain suitable solutions for different markets.

Common Application Fields

Plumbing and Water Supply

In residential and commercial plumbing systems, the connector is commonly used for adapting faucets, valves, water meters and other threaded components with different connection requirements. It helps installers quickly solve interface matching problems during pipeline assembly.

Heating and HVAC Systems

Heating equipment, radiators, pumps and air conditioning water systems often include various threaded interfaces. Brass Male-Female Thread Straight Connector provides a convenient transition between equipment ports and pipeline components, supporting efficient installation and maintenance.

Industrial Equipment Connection

In industrial applications, the connector is used for connecting pressure gauges, control valves, pneumatic components and hydraulic accessories. Its brass construction provides suitable durability for regular industrial fluid systems.

Fire Protection and Building Systems

Fire sprinkler systems and building service pipelines may require different thread conversions between branch pipes and equipment connections. Properly selected brass threaded adapters help achieve reliable assembly according to engineering requirements.

Gas and Compressed Air Systems

For approved low-pressure gas applications and compressed air systems, suitable brass threaded connectors can provide secure equipment connections. Application selection should follow local standards and safety regulations.

Frequently Asked Questions

What is the difference between a male female connector and a reducing bushing?

A male female connector describes the structure of the fitting, meaning one side has an external thread and the other side has an internal thread. A reducing bushing usually emphasizes the size conversion function between different diameters. When the two thread sizes are different, a Brass Male-Female Thread Straight Connector can also serve as a reducing adapter.

How should the installation direction be selected?

The installation direction depends on the connected components and maintenance requirements. Generally, the male threaded end is installed into the female threaded component first, then the opposite female threaded side is connected with the male threaded component. For applications requiring frequent maintenance, the connection direction should allow convenient removal of equipment parts.

Can different thread standards be connected directly?

Different thread standards should not be mixed without confirmation. BSP, G and NPT threads have different profiles and sealing methods. If conversion between different standards is required, customers should confirm compatibility before installation or select a specially customized adapter.

What sealing materials should be used with this connector?

The sealing method depends on the application medium and pressure requirement. PTFE tape is commonly used for water pipeline connections, while liquid thread sealant may be preferred for industrial applications. For gas-related systems, approved sealing materials must be selected according to local regulations.

Can NINGXING provide customized thread combinations?

Yes. NINGXING provides OEM manufacturing services for different thread combinations, sizes, lengths and surface treatments. With professional forging, machining and inspection capabilities, we support customized orders for distributors, contractors and industrial customers worldwide.
