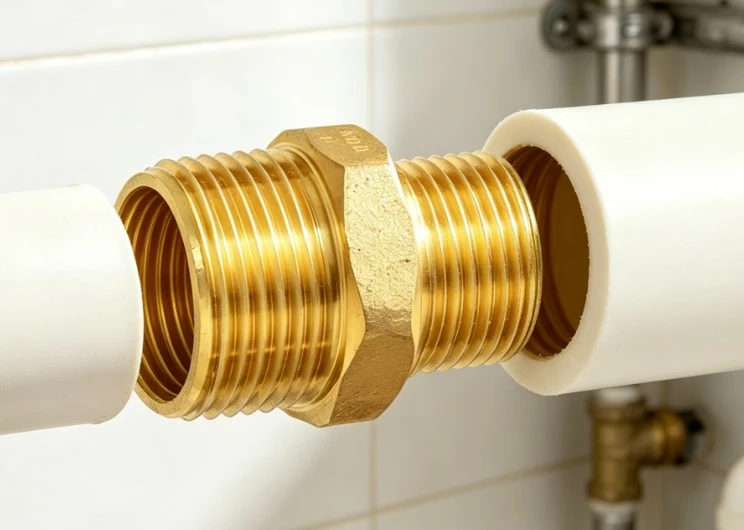

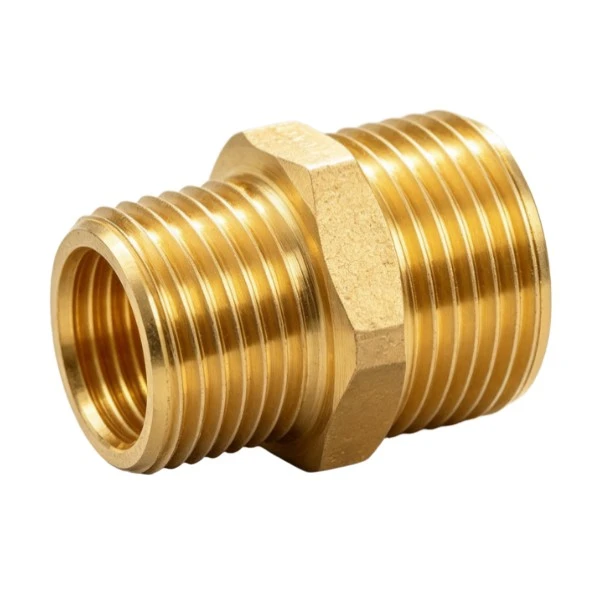

Brass Thread Reducer Adapter

The Brass Thread Reducer Adapter is available in a range of thread sizes and can be produced with G, BSP, BSPT, NPT, metric, or other customized thread standards. Standard and customized versions are available according to drawings, samples, connection requirements, and operating conditions.

NINGXING products are manufactured under an ISO 9001:2015 quality management system and are available with CE and RoHS compliance documentation where applicable.

Connection Design

The Brass Thread Reducer Adapter is used where a piping system requires a transition between different threaded connection sizes. Depending on the design, the fitting can be manufactured with different male-thread configurations or customized combinations for equipment interfaces.

Precise thread dimensions are important because mismatched thread types may result in poor engagement, leakage, or damage during installation. NINGXING can produce fittings according to commonly used thread standards and customer specifications to help match pumps, valves, manifolds, hoses, meters, and other threaded components.

Thread Compatibility

Before installation, both the thread size and thread standard should be confirmed. A G thread, BSPT thread, NPT thread, or metric thread may have different dimensions, thread angles, or sealing methods. Components with similar nominal sizes should not automatically be considered interchangeable.

For customized projects, customers can provide drawings, samples, thread specifications, or mating-part information for technical confirmation.

Sealing Method

The sealing method depends on the thread type and connection design. Parallel threads may require a washer, gasket, O-ring, or sealing surface, while tapered pipe threads may use an appropriate thread sealant or PTFE tape.

Thread sealing materials should be selected according to the operating medium and temperature. Excessive sealant should be avoided because loose material entering the pipeline may affect downstream equipment.

Material and Manufacturing

1. Brass Material Selection

NINGXING uses brass materials suitable for machining and threaded pipe fitting production. Material grades can be selected according to application requirements, including mechanical strength, corrosion resistance, machining performance, and environmental requirements.

2. Forging and Machining

The fitting body can be produced through forging and precision machining to create a compact structure and accurate connection surfaces. CNC equipment is used to machine threads, bores, and external wrenching surfaces according to the required dimensions.

The Brass Thread Reducer Adapter is inspected during production to help control thread accuracy and connection consistency. Customized dimensions and special connection structures can also be produced according to customer requirements.

3. Thread Inspection

Thread dimensions are checked using appropriate inspection methods, including thread gauges where applicable. Proper thread engagement helps reduce the risk of cross-threading, loose connections, and installation damage.

The final inspection requirements may vary according to the product design, order specification, and application requirements.

Operating Conditions

The actual performance of a threaded brass fitting depends on its material grade, size, wall thickness, thread type, connection method, operating medium, temperature, vibration level, and system pressure.

1. Pressure Reference

Pressure capability should not be treated as one fixed value for every Brass Thread Reducer Adapter. Any pressure value must be confirmed according to the specific product model, size, material, and application.

Where a nominal pressure value is provided, it is generally a reference for the specified product under defined operating conditions rather than a universal limit for every installation. The pressure rating may also be reduced when the operating temperature increases.

Customers using the fitting in high-pressure, pulsating, hydraulic, or safety-critical systems should provide detailed operating parameters for engineering confirmation before purchase.

2. Temperature Effects

Brass mechanical properties can change as operating temperature increases. For this reason, a fitting that is suitable for a certain pressure at room temperature may require a lower allowable working pressure at elevated temperatures.

The pressure-temperature relationship depends on the brass grade, fitting geometry, sealing method, and system design. NINGXING recommends confirming the complete operating temperature and pressure range when selecting fittings for heating, hot-water, industrial, or other elevated-temperature applications.

Application Boundaries

Brass threaded fittings can be used in many common fluid and gas systems, but suitability should always be confirmed according to the actual medium and operating environment.

1. Suitable Applications

Depending on the material and product specification, the Brass Thread Reducer Adapter may be used for water systems, compressed air systems, HVAC equipment, general plumbing, certain oil applications, and industrial equipment connections.

Final compatibility should be confirmed based on the exact medium, concentration, temperature, pressure, and local installation requirements.

2. Restricted Media

A standard brass fitting should not automatically be considered suitable for all chemicals, fuels, refrigerants, steam systems, or corrosive fluids. Certain media may cause accelerated corrosion, dezinification, material degradation, or seal damage.

For applications involving aggressive chemicals, high-temperature steam, specialized refrigerants, or other demanding media, customers should confirm material compatibility before installation.

3. Gas System Warning

A general-purpose brass threaded fitting should not automatically be considered suitable for every fuel-gas installation. Gas applications may be subject to specific material requirements, sealing standards, local regulations, pressure limits, and certification requirements.

The fitting should only be used in a gas system when the specific product design and installation comply with the applicable technical and regulatory requirements.

4. Drinking Water Notice

RoHS compliance does not mean that a product is automatically certified for drinking water or food-contact applications. RoHS primarily addresses restrictions on certain hazardous substances and is not equivalent to drinking-water certification.

For potable water projects, customers should specify the required material grade and applicable drinking-water approval standards before ordering.

Application Examples

The Brass Thread Reducer Adapter can be used in different systems where connection sizes need to be reduced or matched between components.

1. HVAC and Heating

In heating or HVAC installations, threaded reducers can connect manifolds, valves, and piping components with different connection sizes. Proper thread selection and sealing are important for maintaining reliable system operation during temperature changes.

2. Industrial Equipment

Industrial equipment may use different thread sizes across pumps, valves, filters, air systems, and auxiliary piping. A properly specified threaded reducer can simplify equipment integration without requiring major changes to the existing connection layout.

3. Equipment Retrofitting

During equipment modification or maintenance, the existing threaded connection may not match the replacement component. The Brass Thread Reducer Adapter can provide a direct transition between compatible thread sizes when the thread standard and sealing method have been properly confirmed.

Product Comparison

For systems with complex thread standards, the best solution should be selected according to the complete connection structure rather than nominal size alone.

Installation Notes

Before installation, inspect both mating threads for damage, deformation, dirt, or metal debris. Confirm that the thread standard and size are compatible before engaging the fitting.

The fitting should first be threaded by hand to reduce the risk of cross-threading. A suitable tool can then be used for final tightening according to the connection design and applicable installation requirements.

Over-tightening should be avoided. Excessive tightening should not be used to compensate for damaged threads, incorrect thread standards, poor sealing surfaces, or other structural problems. If leakage occurs, the connection should be inspected and the underlying cause corrected instead of simply applying additional torque.

Thread Size Reference

The table is provided as a general thread size reference. Actual Brass Thread Reducer Adapter dimensions may vary depending on the product design, thread standard, and customized requirements.

Frequently Asked Questions

How do I select the correct model?

Confirm the thread type, nominal size, sealing method, operating medium, pressure, and temperature. If the application involves different thread standards, drawings or mating-part information can be provided to NINGXING for confirmation.

Can different thread standards be connected?

Some different thread standards require customized designs and should not be directly connected only because their nominal sizes appear similar. The thread angle, pitch, diameter, and sealing method should all be checked.

Is it suitable for high-pressure systems?

Suitability for high-pressure applications depends on the specific fitting model and operating conditions. Customers should provide the required pressure, temperature, medium, and system information for technical evaluation.

Can it be used for drinking water?

RoHS compliance is not the same as drinking-water certification. Potable-water applications may require specific material grades and additional certifications. Please specify these requirements before ordering.

Can it be used for gas?

The product should not automatically be considered suitable for every gas installation. Gas applications must be evaluated according to the specific medium, product design, pressure, certification requirements, and local regulations.

Can customized sizes be produced?

Yes. NINGXING can provide customized thread sizes, dimensions, connection structures, and surface treatments according to drawings, samples, or technical specifications.

About NINGXING

NINGXING supplies brass threaded fittings and customized connection components for different industrial and piping applications. Production and quality management are supported by ISO 9001:2015 requirements, with CE and RoHS compliance available according to applicable product requirements.

The Brass Thread Reducer Adapter can be supplied in standard or customized configurations to match specific connection and application needs. For accurate product selection, customers are encouraged to provide the required thread standard, size, operating medium, pressure, temperature, and mating-part information.
