Factory Direct Brass Female Thread Straight Connector for Industrial Plumbing

NINGXING Brass Female Thread Straight Connector is a precision-engineered brass pipe fitting designed for connecting male threaded pipes, valves, instruments and other threaded components in fluid control systems. Manufactured by an experienced brass fitting Manufacturer with integrated forging, CNC machining and surface treatment capabilities, NINGXING provides stable and durable connection components for global plumbing, industrial and HVAC applications.

As a professional Supplier with an advanced production Factory, NINGXING strictly controls raw material selection, machining accuracy and pressure testing procedures. Our products comply with international quality requirements and are manufactured under ISO9001:2015 quality management standards, with CE and RoHS certifications available for different markets.

Structure and Available Types

The main structure consists of a brass body with precision-machined female threads on one or both ends. During installation, the male threaded component is screwed into the connector, and sealing is achieved through PTFE tape, liquid sealant or gasket solutions according to different application requirements.

Based on connection configuration and engineering requirements, NINGXING supplies several types of Brass Female Thread Straight Connector solutions.

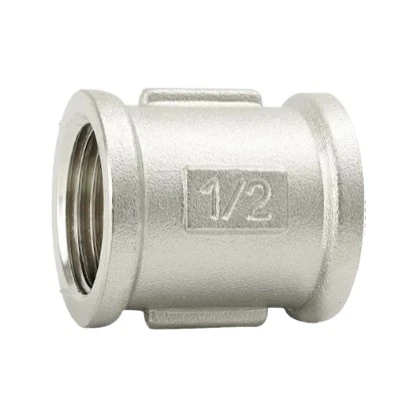

Double Female Thread Type

This type features female threads on both ends and is mainly used for connecting two male threaded components in the same pipeline. It is widely applied in water supply systems, valve connections and equipment pipeline extensions.

Single Female Thread Type

One side adopts female thread while the other side can be designed with different connection structures such as welding, compression or plastic pipe connection. It is commonly used for connecting metal and plastic pipeline systems.

Reducing Female Thread Type

The two ends have different thread sizes, allowing direct connection between different diameter components. This design reduces the need for additional adapters and simplifies pipeline installation.

Extended Thread Type

The extended design provides longer engagement length between threads, improving mechanical strength and installation flexibility in applications where deeper connection positioning is required.

Manufacturing Specifications

NINGXING Brass Female Thread Straight Connector is manufactured using high-quality brass materials including HPb59-1, CW617N and low-lead brass options that meet RoHS environmental requirements. The forged brass structure provides excellent density, strength and resistance against pressure fluctuations compared with common casting products.

Thread specifications include BSP, G thread, NPT and other international standards. Common sizes range from 1/8 inch to 2 inch, with accurate thread machining controlled by CNC equipment and inspected through professional thread gauges to ensure reliable compatibility with different market standards.

Surface finishes include natural brass, nickel plating and customized treatments. Nickel-plated surfaces provide improved corrosion resistance and a clean appearance, making them suitable for humid environments such as bathrooms, kitchens and commercial plumbing installations.

Depending on size, material and thread standard, the connector can support working pressures generally from PN16 to higher pressure requirements in industrial pipeline systems. The operating temperature range is usually suitable for water, oil, air and other common industrial fluids.

Why Choose NINGXING Connectors

Accurate Thread Processing

Thread quality directly determines connection reliability. NINGXING uses precision machining technology to control thread profile, pitch accuracy and surface finish. Every production batch undergoes inspection to ensure smooth installation and stable sealing performance with matching male threaded components.

Forged Brass Construction

The hot forging process creates a compact internal structure with improved mechanical strength. Compared with traditional cast fittings, forged brass connectors provide better resistance against cracking, impact and long-term pressure cycling, making them suitable for demanding pipeline environments.

Flexible Installation Options

The compact straight structure allows installation in limited spaces and reduces the need for additional transition parts. Whether used in residential plumbing, industrial equipment or HVAC systems, the connector provides a simple and efficient connection method.

Corrosion Protection

Different surface treatments are available according to application requirements. Nickel-plated models offer enhanced corrosion resistance for moisture-prone environments, while natural brass options provide an economical solution for standard indoor applications.

OEM and Custom Production

NINGXING supports customized solutions including special thread standards, different lengths, modified dimensions and specific material requirements. With professional machining capability and strict quality control, we provide OEM services for distributors, engineering companies and industrial customers worldwide.

Industrial and Commercial Applications

Plumbing Systems

The connector is widely used for connecting faucets, valves, water meters and other threaded components in residential and commercial water supply systems. Its compact structure makes it suitable for concealed pipelines and maintenance points.

Heating and HVAC Equipment

In heating systems, radiators, boilers, pumps and HVAC equipment often require reliable threaded connections. Brass Female Thread Straight Connector provides stable transition between equipment interfaces and pipeline components.

Industrial Fluid Control

Industrial equipment, pneumatic systems and hydraulic auxiliary pipelines use threaded connectors for assembling instruments, valves and control components. The brass construction provides durability under regular operating conditions.

Gas and Special Pipeline Systems

For approved applications, suitable brass threaded connectors can be used in low-pressure gas systems and compressed air pipelines. Selection should always follow local regulations and system requirements.

Frequently Asked Questions

How should the thread type be selected?

The thread standard should match the connected equipment. BSP and G threads are commonly used in many international plumbing applications, while NPT threads are widely adopted in North American markets. Before ordering, customers should confirm thread specifications, diameter and sealing requirements to avoid compatibility problems.

Does the connector require sealing tape during installation?

For most threaded connections, PTFE tape or liquid thread sealant is recommended to improve sealing performance. The sealing material should be applied evenly without covering excessive thread areas, preventing loose particles from entering the pipeline system.

What is the difference between forged brass and cast brass connectors?

Forged brass connectors have a denser metal structure because the material is formed under high pressure. This improves mechanical strength and resistance to pressure impact. Cast brass products may contain internal defects such as pores if manufacturing control is insufficient.

Can customized connectors be produced?

Yes. NINGXING provides OEM and customized manufacturing services including special thread combinations, non-standard dimensions, surface treatments and packaging requirements. Customers can develop solutions according to project specifications and regional standards.
