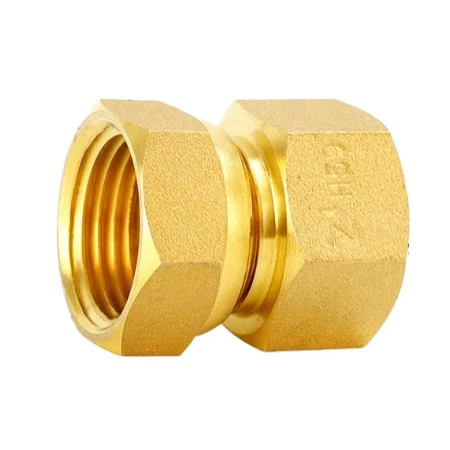

Brass Double Female Thread Flexible Joint

Brass Double Female Thread Flexible Joint is a detachable pipe fitting designed for connecting two external threaded pipes or components. The internal threads on both ends provide a secure connection, while the flexible middle structure allows convenient disassembly during pipeline inspection, repair, or equipment replacement.

Compared with ordinary fixed connectors, this type of fitting reduces maintenance difficulty and helps shorten repair time in complex piping systems. The brass construction provides good corrosion resistance and durability, making it suitable for long-term operation in water, air, oil, and other compatible media.

NINGXING manufactures this product in various specifications, including DN8-DN100 (1/4"-4"), with customized thread standards available according to project requirements.

Connection Design

1. Flexible Structure

The detachable structure is the main feature of this fitting. During pipeline maintenance, operators can disconnect the joint without cutting pipes or carrying out welding operations. This design is especially suitable for equipment connections and pipeline systems that require frequent inspection.

2. Thread Connection

Both ends adopt precision internal thread design to connect with external threaded pipes and fittings. Clear thread profiles ensure smooth installation and reduce the risk of leakage caused by poor thread matching.

Performance Characteristics

1. Pressure Stability

Manufactured from forged brass material, the fitting has a dense internal structure and reliable mechanical strength. It can withstand working pressure up to 1.6 MPa under normal conditions, making it suitable for various industrial and commercial pipeline systems.

2. Corrosion Resistance

CuZn39Pb3 brass provides good resistance against oxidation and corrosion in common water, air, oil, and heating applications. The material remains stable under temperature fluctuations from -20℃ to +120℃.

Manufacturing Process

1. Forging Process

NINGXING uses brass forging technology to improve material density and reduce defects commonly found in traditional casting processes. The forged structure enhances durability and helps maintain stable performance during long-term use.

2. Thread Machining

Precision machining equipment is used to process the internal threads and connection surfaces. Each batch undergoes dimensional inspection to ensure thread accuracy and compatibility with standard external threaded components.

Product Specifications

Size Reference

Custom sizes, thread types, and dimensions can be produced according to customer drawings or samples.

Installation and Maintenance

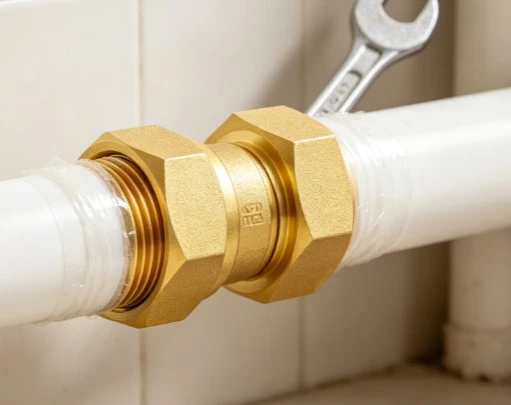

1. Installation Method

Before installation, confirm that the pipe thread specification matches the fitting. PTFE tape or suitable thread sealant should be applied evenly to the external thread before tightening. Proper installation torque should be used to avoid thread damage.

2. Maintenance Advantage

The detachable design allows easier maintenance compared with permanent pipe connections. When equipment replacement or pipeline inspection is required, the joint can be removed and reinstalled, reducing labor costs and minimizing system downtime.

Product Comparison

Flexible Joint vs Standard Connector

Compared with standard fixed pipe connectors, NINGXING Brass Double Female Thread Flexible Joint is designed for applications where installation flexibility and future maintenance are important. The detachable structure provides additional convenience during pipeline inspection, repair, and equipment replacement.

For projects requiring frequent maintenance, equipment replacement, or complex pipeline arrangements, the flexible structure of NINGXING Brass Double Female Thread Flexible Joint provides greater convenience and reduces long-term maintenance costs.

Application Examples

1. Water Pipeline Renovation

In an old residential water supply renovation project, the customer needed to replace damaged pipe sections in a limited installation space. Traditional welding methods increased construction difficulty and extended water interruption time.

After adopting NINGXING Brass Double Female Thread Flexible Joint, maintenance workers completed the replacement through threaded connection without removing large sections of pipeline. The detachable design improved repair efficiency and reduced construction costs.

2. Industrial Cooling System

A chemical factory used cooling water circulation pipelines that operated under continuous pressure changes and temperature fluctuations. Previous connectors frequently experienced leakage and thread damage, affecting production efficiency.

The customer replaced them with brass flexible joints. The corrosion-resistant brass material and stable threaded connection improved pipeline reliability, while the detachable structure simplified future inspection and maintenance work.

3. Solar Heating System

Solar heating pipelines are exposed to outdoor temperature changes throughout the year. Low-quality fittings may crack or lose sealing performance after repeated heating and cooling cycles.

The brass construction of this product provides stable mechanical performance under temperature variation. Combined with precision thread connection, it helps maintain reliable operation in solar water heating systems.

FAQ

What is this fitting mainly used for?

It is used for connecting external threaded pipes in water supply, heating, gas, HVAC, industrial pipelines, and equipment connection systems where maintenance access is required.

Can it be removed after installation?

Yes. The Brass Double Female Thread Flexible Joint design allows disassembly and reinstallation when pipeline maintenance or equipment replacement is needed.

What sizes are available?

Standard sizes range from DN8 to DN100 (1/4"-4"). Customized dimensions and thread standards are available.

What sealing method should be used?

PTFE tape or suitable thread sealant is commonly used depending on the application requirements and working medium.
