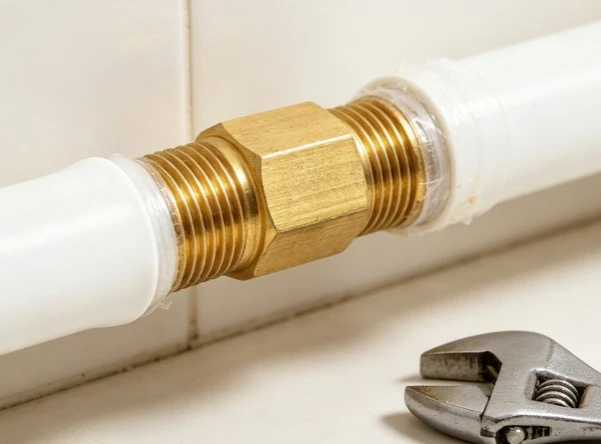

Brass Thickened Double Female Connector

Metric, G, NPT, and BSP thread configurations are available, with nickel-plated, tin-plated, or natural brass finishes depending on application requirements. The Brass Thickened Double Female Connector supports water, oil, compressed air, gas, and other suitable non-corrosive media, with a working pressure of up to 1.6 MPa under specified conditions. NINGXING provides bulk supply and OEM/ODM customization for different thread sizes, lengths, and surface treatments.

Structural Design for Higher Mechanical Loads

1. Thickened Wall Construction

The reinforced wall is the defining structural feature of this connector. Compared with conventional thin-wall fittings, the increased material thickness provides greater resistance to deformation when the connection is exposed to tightening torque, internal pressure, external impact, or continuous mechanical vibration. This makes the connector suitable for piping assemblies where long-term structural stability is more important than simply completing a basic threaded connection.

The thicker body also provides additional material around the female-threaded sections, helping maintain thread integrity during repeated assembly and disassembly. For industrial equipment and piping systems that require frequent maintenance, this structure can provide a more durable connection point.

2. Double Female Configuration

Both ends of the connector feature female threads, allowing two male-threaded components to be joined directly. This configuration is useful when two externally threaded components need to be connected without changing their original orientation or modifying the existing pipe layout.

Depending on the piping design, the same connector can be used to extend a threaded connection, join two components of the same specification, or serve as an intermediate connection between different sections of a system when compatible thread configurations are selected.

Thread and Size Compatibility

1. Metric and Pipe Thread Options

NINGXING supports Metric, G, NPT, and BSP thread configurations for different international equipment and piping standards. Since thread dimensions and profiles vary between standards, buyers should confirm the complete thread specification rather than selecting a connector based only on nominal diameter.

For projects involving imported equipment, replacement parts, or mixed piping systems, confirming the thread standard before procurement can prevent installation problems caused by incompatible pitch, diameter, or thread profile.

2. Connection Length and Bore Configuration

The body length, internal passage, thread depth, and external dimensions can be adjusted for specific equipment requirements. This is particularly useful when the available installation space is limited or when the connector must match an existing valve, pipe, manifold, or machine interface.

For OEM projects, customers can provide drawings, samples, thread specifications, or dimensional requirements so that NINGXING can evaluate the appropriate configuration.

Material and Surface Treatment

1. CuZn39Pb3 Brass

The main body is manufactured from CuZn39Pb3 brass, a commonly used copper-zinc alloy for machined pipe fittings. The material provides good machinability, mechanical properties, and corrosion resistance for water, oil, air, gas, and other suitable non-corrosive media.

Before production, brass bar stock can be checked for material composition to help ensure consistency between production batches. The material selection also allows the connector to be processed through forging and precision machining operations.

2. Nickel and Tin Plating

Different surface treatments are available according to the intended environment and appearance requirements. Nickel plating provides a smooth metallic surface and additional surface protection, while tin plating can be selected for applications requiring a different surface characteristic. Natural brass is also available when additional plating is not required.

The appropriate surface treatment should be selected according to the installation environment, medium, temperature, and project requirements.

Manufacturing Process

1. Hot Forging

The Brass Thickened Double Female Connector body can be formed through hot forging before precision machining. Forging helps create a relatively dense metal structure and provides a suitable base for the reinforced wall design. This process is particularly useful for components that need to withstand mechanical loads and internal pressure.

After forming, excess material is removed and the workpiece proceeds to machining operations to achieve the required dimensions and thread geometry.

2. CNC Machining

Precision CNC equipment is used for thread machining, internal bore processing, external dimensions, and other critical features. CNC machining helps maintain dimensional consistency across batch production and ensures that the female threads can properly match standard male-threaded components.

Critical thread dimensions are inspected during production to reduce installation difficulties caused by dimensional deviation or incomplete thread profiles.

3. Quality Control

NINGXING organizes production according to ISO 9001:2015 quality management requirements. Raw materials, first-piece samples, machining dimensions, thread specifications, and finished-product appearance can be inspected throughout the manufacturing process.

For bulk orders, production inspection records and technical confirmation can be coordinated according to the customer's requirements. Products are available with CE and RoHS certifications for applicable markets.

Technical Specifications

Actual pressure and temperature limits depend on the connector size, thread configuration, medium, connected components, and complete piping system.

Size and Thread Dimension Reference

Engineering Applications

1. Industrial Compressed Air Systems

In a large manufacturing company's compressed-air pipeline modification project, the piping operated at approximately 0.8-1.2 MPa and was exposed to considerable vibration. Conventional standard-wall connectors had experienced repeated thread stripping and fitting cracking, resulting in unplanned production interruptions.

After the customer replaced them with thickened double female connectors, the reinforced wall structure improved resistance to vibration and pressure loading. The system operated continuously for 12 months without reported leakage or connector damage, while overall equipment effectiveness increased by approximately 15%.

2. HVAC Piping

In a commercial complex central air-conditioning chilled-water system, the installation team needed to complete a large number of pipe connections inside narrow service shafts. The compact threaded configuration allowed installers to connect male-threaded components without welding, helping reduce installation complexity and construction time.

The brass construction also provided suitable corrosion resistance for humid mechanical-room and piping environments when used within the specified application conditions.

3. New Energy and Automation Equipment

Connector products from the referenced market examples, including products offered by SuperAir and McCaddy (Foshan) Technology Co., Ltd., are used across industries such as new energy vehicles, automotive components, automated production equipment, refrigeration and air-conditioning, medical equipment, instrumentation, and household appliances.

In battery cooling-pipeline applications for new energy vehicles, brass threaded connectors can be used to establish connections within coolant circulation systems where appropriate material compatibility, pressure, and temperature requirements are met.

Application Medium Compatibility

1. Water and Chilled Water

The Brass Thickened Double Female Connector can be used for suitable water and chilled-water piping applications within the specified pressure and temperature range. Brass provides good corrosion resistance in many conventional water systems, but water chemistry and operating conditions should be considered for long-term service.

2. Oil and Hydraulic Media

For oil-based applications, the connector can be selected when the brass material and sealing system are compatible with the specific hydraulic or lubricating medium. The actual pressure rating should be evaluated together with the connected pipe, valve, and sealing components.

3. Compressed Air and Gas

The double female configuration can be used in compressed-air and suitable gas piping systems when the thread standard and sealing method are correctly selected. For fuel gas or other safety-critical gas applications, the connector should meet the applicable local standards and system requirements before installation.

Installation Requirements

1. Thread Matching

Before installation, verify that both male-threaded components correspond to the connector's thread standard and size. Metric, G/BSP, and NPT threads should not be treated as interchangeable simply because their nominal sizes appear similar.

2. Sealing Preparation

Because the connector uses threaded connections rather than an integrated O-ring face seal, PTFE tape or an appropriate thread sealant is normally applied to the mating male thread. The sealing material should be applied evenly without contaminating the internal flow passage.

3. Tightening and Testing

The male-threaded component should first be engaged by hand to ensure correct alignment and prevent cross-threading. Final tightening should be performed using the appropriate wrenching surface without applying excessive torque. After assembly, the piping system should undergo a pressure or leakage test before being placed into normal service.

Size and Customization

Common connector sizes can be supplied according to standard Metric, G, NPT, and BSP specifications. The actual dimensions, thread depth, body length, bore diameter, and external profile can be customized when required.

NINGXING supports OEM/ODM production for non-standard thread specifications, different connection lengths, customized dimensions, and surface treatments. For engineering projects, customers can provide drawings or samples for dimensional review before mass production.

Bulk Supply and Packaging

The Brass Thickened Double Female Connector is commonly supplied in bulk for distributors, equipment manufacturers, engineering contractors, maintenance companies, and piping-system integrators. Bulk supply allows customers to purchase standardized quantities according to project or inventory requirements.

Packaging methods can be coordinated according to order quantity, transportation method, and customer requirements. For large-volume procurement, NINGXING can discuss product specifications, quantity, packaging, labeling, and delivery arrangements before production.

FAQ

What is the main advantage of the thickened design?

The reinforced wall increases the amount of material surrounding the threaded connection and body, providing greater resistance to mechanical deformation, tightening loads, internal pressure, and vibration compared with some standard-wall designs. It is particularly useful for applications where connection durability is an important consideration.

What types of pipes or components can it connect?

The connector is designed to join two male-threaded components. Depending on the selected specification, these may include threaded pipes, valves, adapters, manifolds, equipment ports, and other compatible fittings.

What thread standards are available?

NINGXING can provide Metric, G, NPT, and BSP thread configurations. The required thread standard and size should be confirmed before ordering, especially when the connector will be installed on imported equipment or mixed-standard piping.

What media is suitable for this connector?

Typical applications include water, oil, compressed air, gas, and other suitable non-corrosive media. For corrosive chemicals, high-purity fluids, or special process media, the material compatibility should be evaluated before purchase.

Technical Support for Your Project

For bulk orders or equipment integration, buyers can provide the required thread standard, nominal size, working pressure, operating temperature, medium, connection length, and surface-treatment requirements. NINGXING can evaluate the specifications and provide a suitable configuration for production confirmation.
