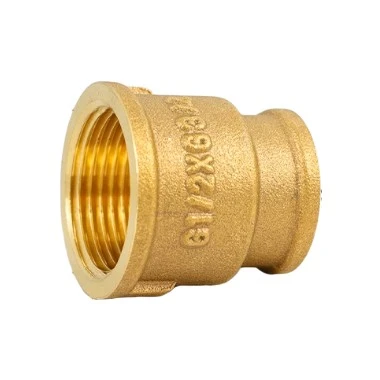

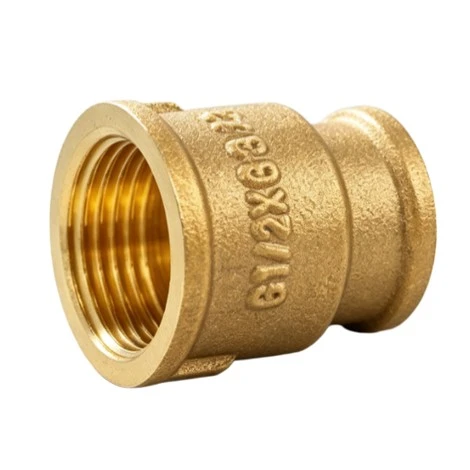

Brass Male-Female Thread Adapter

The Brass Male-Female Thread Adapter uses a male-to-female configuration for connecting components with different thread directions or sizes. The male end can be connected to a female-threaded valve, pipe fitting, or equipment port, while the female end accepts a male-threaded pipe or component. This configuration can reduce the number of intermediate fittings in a piping assembly and therefore reduce potential leakage points.

A hexagonal wrench section can be provided according to the design, allowing installation and removal with standard hand tools. Before ordering, buyers should confirm the thread type, nominal size, thread standard, and sealing method.

Material and Machining

1. Brass Material

The main body is manufactured from brass, which provides a combination of mechanical strength, machinability, and corrosion resistance for conventional piping applications.

Different brass grades may be selected according to the application. For drinking water, food processing, or applications with strict lead-content requirements, the specific brass grade and applicable sanitary regulations should be confirmed before purchase. RoHS compliance alone does not mean that a product is certified for potable water use.

2. Thread Machining

The internal and external threads, through hole, and sealing surfaces are machined using CNC equipment. Key dimensions such as thread diameter, pitch, effective thread length, and fitting dimensions are controlled during production.

Thread gauges can be used for inspection to reduce problems such as cross-threading, loose engagement, or difficult installation. For export applications, buyers should specify whether they require G/BSP, NPT, Metric, or another thread standard.

3. Surface Treatment

Polished brass or nickel-plated finishes can be supplied depending on the application. Surface treatment improves appearance and can provide additional protection against surface oxidation and corrosion.

For highly humid, salt-laden, or chemically aggressive environments, material compatibility should be evaluated together with the surface treatment rather than relying on plating alone.

Selection Parameters

Pressure note: ≤1.6 MPa is a reference working pressure under normal-temperature conditions. It does not mean that every size, thread type, temperature, or application can operate continuously at 1.6 MPa. Actual allowable pressure depends on fitting size, thread standard, temperature, medium, sealing method, and installation conditions. Applications involving pressure pulses, water hammer, or elevated temperatures should be confirmed separately before purchase.

Dimensions and Thread Options

The following table provides reference dimensions for commonly used brass threaded fittings. Actual dimensions may vary according to the fitting design and thread standard. Production dimensions should be confirmed against the approved drawing or technical specification.

The table above is for reference. G/BSP, NPT, and Metric threads have different profiles, dimensions, and sealing characteristics and should not be treated as interchangeable.

Product Comparison

Different threaded adapters provide different levels of mechanical performance and dimensional accuracy. The appropriate option should be selected according to the working environment rather than unit price alone.

For projects requiring accurate thread engagement, repeated installation, or long-term use in conventional piping systems, brass provides a useful combination of strength, machinability, and corrosion resistance.

Application Examples

1. Hydraulic Power Unit

An engineering machinery manufacturer needed to convert a G3/4" pump outlet to a G1/2" cooler inlet on a compact hydraulic power unit. The original cast fittings experienced oil leakage during equipment testing, which was traced to defects within the casting structure.

The manufacturer switched to NINGXING's Brass Male-Female Thread Adapter, produced according to the required thread specifications. The dense brass material and controlled CNC machining improved thread engagement and reduced dimensional variation during assembly.

The 25 MPa pressure mentioned in the original application case refers to the specific equipment pulse-pressure test, not the rated working pressure of the fitting. The applicable pressure rating must always be confirmed according to the actual product specification and operating conditions.

2. Building Gas Regulator Cabinet

In a building gas regulator cabinet in northern China, an instrument pipeline required conversion from DN20 to DN15. The equipment was exposed to low winter temperatures and condensation.

The project used brass threaded adapters to complete the interface conversion. For gas applications, however, product selection must also consider local regulations, pressure ratings, thread standards, sealing requirements, and applicable gas-system certifications. A general-purpose brass fitting should not automatically be considered suitable for every gas installation.

3. Water-Cooling Equipment

A laser cutting machine required a connection between an NPT1/2" male pump outlet and an M22×1.5 female cooling-line interface. NINGXING produced a customized adapter according to the customer's drawing.

Using one customized transition fitting instead of several intermediate adapters reduced the number of connection points and helped save installation space. For cooling-water applications, the coolant composition, temperature, pressure, and material compatibility should be checked before selection.

Application Limits

Correct application depends on more than the fitting size. The following conditions should be considered before purchase and installation.

1. Suitable Media

The product is generally suitable for clean water, general industrial water, air, and selected non-corrosive oils. Actual compatibility depends on the brass grade, sealing material, temperature, pressure, and chemical composition of the medium.

2. Corrosive Media

Strong acids, strong alkalis, high-chloride fluids, and other aggressive chemicals may affect brass. Material compatibility should be confirmed before use.

3. Gas Service

When used in gas piping, the thread standard, sealing method, pressure rating, applicable regulations, and required certifications must be confirmed. A standard brass fitting should not be substituted for a gas-certified component without verification.

4. Potable Water

RoHS compliance concerns restrictions on specified hazardous substances and does not constitute potable-water certification. For drinking-water applications, the brass grade and applicable local sanitary requirements should be verified.

5. Temperature

The allowable operating temperature depends not only on the brass body but also on the sealing material and medium. High-temperature applications require confirmation of the specific model's temperature rating.

6. Pressure

The reference working pressure is ≤1.6 MPa at normal temperature. Allowable pressure may decrease as operating temperature increases. Pressure surges, water hammer, and cyclic pressure conditions require additional evaluation.

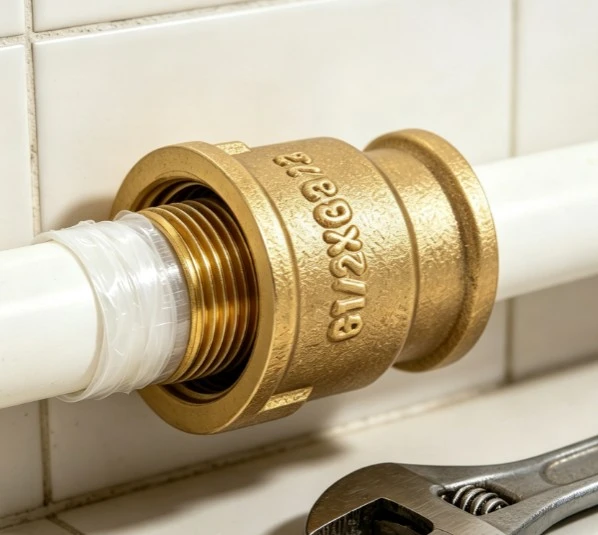

Installation and Maintenance

Before installation, confirm that the pipe and fitting use compatible thread standards. G/BSP, NPT, and Metric threads should not be mixed simply because their nominal dimensions appear similar.

Clean the threads and remove dirt, metal chips, and other contaminants before assembly. Select a suitable thread sealant according to the thread type and application.

Use a wrench on the designated hexagonal section during installation. Avoid gripping the threaded section or thin-wall areas directly, as this may cause deformation.

After installation, conduct a pressure or leak test according to the requirements of the piping system. If leakage occurs, depressurize the system before checking thread compatibility, sealing material, and installation torque.

During service, replace the fitting if there is significant thread damage, deformation, severe corrosion, or persistent leakage. Excessive tightening or additional sealing tape should not be used to compensate for structural damage or incorrect thread selection.

Quality Control and Certifications

NINGXING applies quality control from raw material inspection through machining and final inspection.

The product is manufactured under an ISO 9001:2015 quality management system and is available with CE and RoHS compliance according to the applicable product requirements.

Certification scope and applicable standards should be confirmed against the certificate and specific product model before use in regulated applications.

FAQ

Can it connect pipes with different sizes?

Yes. One of the main purposes of this fitting is to connect components with different interface sizes or thread configurations. Both thread standards and nominal dimensions must be confirmed before ordering.

Can it be used for water, oil, and air?

It can generally be used with clean water, general industrial water, air, and selected non-corrosive oils. Actual suitability depends on the medium's chemical composition, temperature, pressure, and the sealing material.

Can every size operate at 1.6 MPa?

No. ≤1.6 MPa is a reference working pressure under normal-temperature conditions, not a universal rating for every size, thread standard, or operating temperature. The actual pressure rating should be confirmed according to the product specification and application conditions.

Does RoHS certification mean it is suitable for drinking water?

No. RoHS addresses restrictions on specified hazardous substances and does not constitute potable-water certification. Drinking-water applications require confirmation of the brass material and applicable sanitary requirements in the target market.

What information should be provided for quotation?

Buyers should provide the male and female thread specifications, thread standard, pipe size, working pressure, working temperature, medium, required quantity, and surface treatment. Drawings or samples are recommended for customized products.

Ordering Information

For bulk purchasing, buyers should specify the product size, male and female thread standards, material grade, surface treatment, working pressure, operating temperature, medium, packaging requirements, and quantity.

NINGXING supplies standard and customized Brass Male-Female Thread Adapter solutions for distributors, equipment manufacturers, engineering contractors, and industrial buyers. OEM/ODM production is available according to drawings or samples.
