Brass Thickened Gas Pipe Elbow Reducer 90-Degree Male Thread

NINGXING provides precision brass fittings for HVAC, refrigeration, gas and industrial piping applications. This Brass Thickened Gas Pipe Elbow Reducer 90-Degree Male Thread is developed for projects where a 90-degree direction change, different pipe sizes and a threaded equipment connection need to be handled in one compact component.

Manufactured from quality brass bar with forging and CNC machining, the reinforced construction is designed for demanding installation environments, including limited-space HVAC systems and equipment exposed to pressure fluctuations and temperature changes.

Connection Design

One Fitting, Three Functions

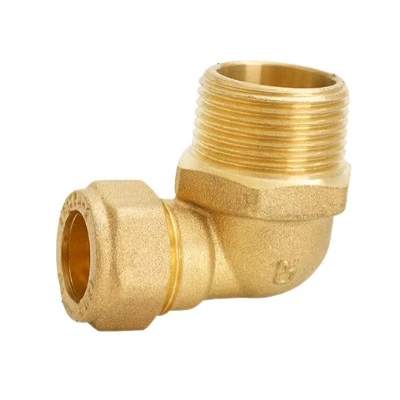

The Brass Thickened Gas Pipe Elbow Reducer 90-Degree Male Thread combines a 90-degree elbow, reducing connection and male-threaded interface in one fitting.

This configuration is particularly useful when the pipe route needs to turn while connecting two different diameters. Compared with using a separate elbow and reducer, an integrated design can simplify the connection structure and save installation space.

Compact Routing

HVAC and refrigeration equipment often has limited space around compressors, condensers, valves and copper tubing. The 90-degree configuration helps redirect the pipe around equipment and structural obstacles without creating an unnecessarily long connection.

The reducing section also provides a practical transition between different pipe sizes, helping contractors achieve a cleaner pipe layout.

Material and Construction

Forged Brass Body

The fitting is produced from brass bar using a controlled forging process before precision machining. Forging helps create a dense material structure and reduces the internal defects that may occur in poorly controlled casting processes.

The reinforced wall design provides additional structural support around the elbow body and threaded section. This is useful for applications where the connection may experience vibration, pressure fluctuation or repeated thermal cycling.

CNC Machined Threads

After forging, the fitting is CNC machined to control the thread, connection dimensions and sealing surfaces.

Accurate machining helps ensure smoother thread engagement and consistent dimensions between production batches. This is especially important for B2B customers purchasing fittings for repeated equipment assembly or large-scale HVAC projects.

Performance for HVAC Applications

Pressure and Temperature

The supplied specification covers a nominal pressure range of approximately 1.0 MPa to 16 MPa, depending on product size and configuration.

The applicable temperature can reach up to 150°C. The actual pressure and temperature rating should be confirmed according to the specific size, material, connection type and operating medium.

Refrigerant Compatibility

The fitting can be used with compatible refrigerants and other non-corrosive or mildly corrosive media, including R22, R410A and R32, as well as water, air and oil where the complete system design permits.

For refrigerant applications, buyers should confirm the refrigerant, working pressure, temperature range and applicable local requirements before selecting the fitting.

Product Comparison

Integrated vs Standard Elbow

For a simple 90-degree pipe turn, a conventional elbow may be sufficient. When the installation also requires a size transition, an integrated reducing configuration can reduce the number of individual components.

Why Buyers Compare More Than Price

For HVAC and refrigeration components, the purchase price is only one part of the total cost. Thread accuracy, dimensional consistency, material quality and leakage performance can directly affect installation time and maintenance requirements.

NINGXING focuses on controlled raw materials, forged construction, CNC machining and finished-product testing to provide more consistent components for repeat B2B orders.

Quality Control

Dimensional Inspection

Critical dimensions such as connection diameter, thread size and fitting geometry are inspected during production. This helps maintain compatibility between the fitting and the customer's tubing, valves and equipment interfaces.

Pressure and Leak Testing

Finished products undergo sealing and pressure testing according to applicable production requirements. These inspections are designed to identify leakage or structural problems before shipment.

For refrigeration systems, factory testing should be considered together with proper system evacuation, pressure testing and commissioning at the installation site.

Surface Protection

Natural brass can be supplied for standard applications. Nickel plating or passivation can be selected when additional surface protection is required.

These treatments are particularly useful for applications exposed to moisture, condensation or frequent temperature changes.

Application Cases

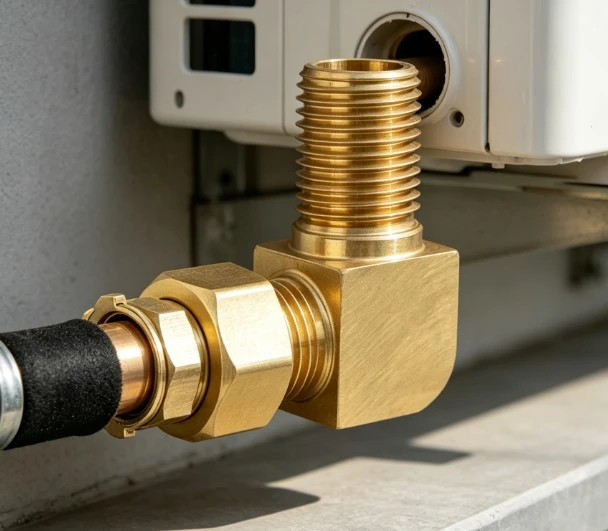

Central Air Conditioning Installation

A large commercial complex was installing a central air-conditioning system in a crowded mechanical room. The available space was limited, and the main and branch copper pipes had different diameters.

The Brass Thickened Gas Pipe Elbow Reducer 90-Degree Male Thread allowed the contractor to change the pipe direction and connect different pipe sizes through one component. This simplified the piping arrangement and reduced the space required around the equipment.

Outdoor Unit Relocation

A residential customer needed to relocate an outdoor air-conditioning unit during renovation. The existing copper pipe route needed to be modified, and the original connection position no longer matched the new installation location.

The threaded connection provided a practical solution for the modified pipe arrangement, allowing the installer to complete the connection without rebuilding the entire pipeline layout.

Marine and Industrial HVAC

A marine HVAC system was operating in a humid, salt-laden environment where ordinary steel or low-grade fittings could be more vulnerable to corrosion.

The Brass Thickened Gas Pipe Elbow Reducer 90-Degree Male Thread was selected for its brass construction and available surface protection. The fitting provided a suitable connection solution for the demanding environmental conditions of the equipment.

Refrigeration Equipment Maintenance

During air-conditioning maintenance, an existing connection showed signs of thread wear and sealing deterioration.

The replacement fitting was manufactured according to the required connection dimensions and thread specification. Its standardized threaded interface helped the maintenance team replace the worn component without significantly changing the existing pipe arrangement.

Size Information

The standard thread range covers 1/8 inch to 4 inches. Custom reducing combinations can also be produced according to drawings or samples.

The final dimensions, thread type, reducing combination and wall thickness can be adjusted according to the customer's technical drawing, sample or equipment interface.

Installation Considerations

Check the Thread

Before installation, confirm the nominal size, thread standard and mating interface. NPT, BSP and metric threads should not be treated as interchangeable simply because their outside diameters appear similar.

For replacement projects, thread gauges and calipers can be used to confirm the existing connection.

Control Installation Torque

The threaded connection should be aligned correctly before tightening. Excessive force can damage the thread or deform the fitting.

For compatible tapered threads, an appropriate PTFE sealing tape or thread sealant can be selected according to the system requirements.

After installation, the completed system should undergo the pressure and leakage checks required for the specific HVAC or refrigeration application.

Custom Manufacturing

OEM and ODM

NINGXING supports OEM and ODM production for HVAC manufacturers, distributors and engineering companies.

Customers can provide drawings, samples or technical specifications for customized thread standards, dimensions, reducing combinations and wall thicknesses.

Surface Options

Natural brass, nickel-plated and passivated finishes can be considered according to the application environment.

For humid, coastal or condensation-prone installations, the appropriate surface treatment should be selected based on the actual operating conditions.

Certifications

ISO 9001:2015

NINGXING follows an ISO 9001:2015 quality management system covering material procurement, production control and inspection procedures.

CE and RoHS

Applicable product configurations are available with CE and RoHS certifications, supporting customers serving international HVAC and industrial markets.

Certification applicability should be confirmed according to the exact product configuration and destination market.

FAQ

What Is the Main Advantage of This Fitting?

It combines a 90-degree direction change, size reduction and male-threaded connection in one component. This can simplify pipe layouts where space and connection points are limited.

Is It Suitable for Refrigeration Systems?

Yes, it can be used for compatible refrigeration applications, including systems using R22, R410A and R32, provided that the fitting's pressure, temperature and material specifications meet the system requirements.

What Is the Maximum Pressure?

The supplied specification covers approximately 1.0 MPa to 16 MPa, depending on the configuration. The exact pressure rating should be confirmed before ordering.

What Is the Maximum Temperature?

Applicable configurations can reach up to 150°C. The actual rating depends on the product size, material and operating conditions.

Can I Order a Different Thread?

Yes. NINGXING can evaluate NPT, BSPT, BSPP, metric and other thread requirements according to drawings or samples.

Can the Wall Thickness Be Customized?

Yes. Special wall thicknesses can be evaluated for applications requiring additional structural strength or specific equipment interfaces.

How Does It Compare with a Normal Brass Elbow?

A normal elbow mainly changes pipe direction. The reducing design also connects different pipe sizes, while the reinforced construction provides additional material around key areas.

Does NINGXING Accept Small Trial Orders?

Trial and sample orders can be discussed according to the required specification. For regular B2B supply, NINGXING can support batch production based on confirmed drawings and technical requirements.
