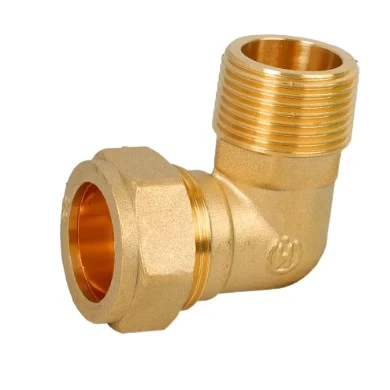

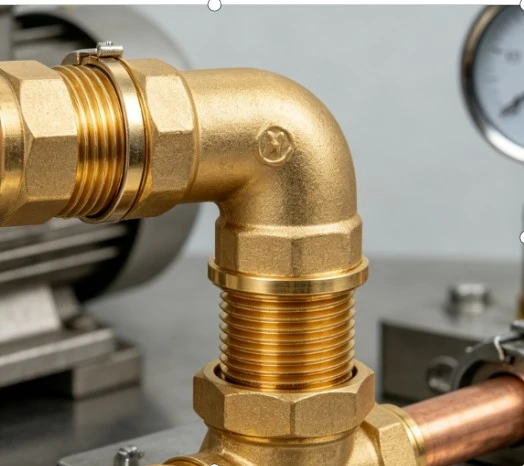

Brass Thickened Air Conditioning Elbow Reducer 90-Degree Male Thread

The Brass Thickened Air Conditioning Elbow Reducer 90-Degree Male Thready provides a stable mechanical connection under pressure fluctuations and repeated temperature changes. Different thread standards, dimensions and surface finishes can be supplied according to equipment specifications and project requirements.

NINGXING operates under an ISO 9001:2015 quality management system, with applicable products available with CE and RoHS certifications. OEM and ODM production is available for distributors, HVAC manufacturers, contractors and engineering projects.

Designed for HVAC Connections

Compact 90-Degree Routing

Air-conditioning installations often have limited space around compressors, condensers, valves and service panels. A 90-degree configuration allows the connected pipe to change direction without creating a large bending radius.

This can make the piping arrangement cleaner and easier to maintain, especially when several copper tubes are installed close to each other.

Different Pipe Sizes

The Brass Thickened Air Conditioning Elbow Reducer 90-Degree Male Thread combines a directional elbow with a reducing connection. It can connect different pipe sizes at the turning point, reducing the need for an additional reducer in suitable installations.

For engineering projects, the required inlet and outlet dimensions can be confirmed according to the actual pipe size and equipment interface.

Equipment-Side Thread

The male-threaded end is intended for connection with a compatible female-threaded port. NPT, BSP, BSPT and metric thread configurations can be supplied according to the application.

Purchasers should confirm the actual thread standard rather than relying only on nominal size, as G, NPT and other thread systems are not interchangeable.

Refrigeration System Compatibility

Refrigerant Applications

The fitting can be considered for compatible refrigeration systems using refrigerants such as R22, R410A and R32, provided that the pressure, temperature, material compatibility and connection requirements are within the specified range.

For new refrigeration projects, the fitting specification should be selected according to the complete system design rather than refrigerant type alone.

Pressure Changes

HVAC and refrigeration systems can experience pressure changes during startup, shutdown and changes in operating load. The reinforced body is designed to provide greater mechanical stability than lightweight fittings.

The applicable pressure range can reach approximately 1.0 MPa to 16 MPa, depending on size, connection configuration and design.

Temperature Cycles

Air-conditioning equipment repeatedly moves between different operating temperatures. The brass construction provides suitable mechanical stability for temperature-cycling applications when the product is operated within its specified temperature range.

The applicable temperature can reach up to 150°C, depending on the product configuration.

Choosing the Right Specification

Pipe Diameter

The first selection factor is the outside diameter or nominal size of the connected pipe. For a reducing connection, both sides should be confirmed before ordering.

Common sizes include DN6, DN8, DN10, DN15, DN20, DN25 and larger sizes. Customized combinations are available for project requirements.

Thread Standard

Thread compatibility is equally important. NINGXING can supply NPT, BSP, BSPT and metric thread options.

For replacement projects, buyers can provide the original fitting, technical drawing or thread measurements so the correct specification can be identified.

Pressure Rating

A fitting used on a refrigeration circuit should not be selected only according to pipe diameter. Working pressure, pressure peaks and operating temperature should also be considered.

NINGXING can confirm the suitable configuration based on the customer's system parameters.

Installation Space and Maintenance

Narrow Equipment Areas

Traditional combinations may require a straight connector, reducer and elbow. In restricted areas, the accumulated length of several fittings can make installation difficult.

An integrated reducing elbow can shorten the connection arrangement and provide more flexibility when routing tubing around HVAC equipment.

Replacement Work

Maintenance technicians often need to replace worn or damaged fittings without changing the entire pipeline. A correctly matched threaded connection can make replacement more straightforward.

Before replacement, the technician should verify pipe size, thread type, pressure rating and sealing method.

Leak Prevention

Thread accuracy, proper sealing material and correct installation torque all influence connection performance. The mating threads should be clean and undamaged before assembly.

After installation, the completed system should be tested according to the applicable HVAC or refrigeration safety requirements.

Product Comparison

Integrated vs Separate Fittings

For projects where two different pipe sizes must turn at 90-Degrees, an integrated configuration can reduce component count and simplify procurement. A conventional elbow may remain the better choice when both pipe ends have the same diameter.

Application Cases

Central Air Conditioning Installation

A large commercial complex was installing a central air-conditioning system in a crowded mechanical room. The available space was limited, while the main and branch copper pipes had different diameters.

The contractor selected this reducing 90-degree configuration to change the pipe direction and connect the different pipe sizes through one fitting. This simplified the piping arrangement and reduced the space required around the HVAC equipment.

Outdoor Unit Relocation

A residential customer needed to relocate an outdoor air-conditioning unit during renovation. The existing copper pipe route and connection position no longer matched the new installation arrangement.

The threaded connection provided a practical solution for the modified pipe layout, helping the installer complete the connection without rebuilding the entire surrounding pipeline.

Marine and Industrial HVAC

A marine HVAC system was operating in a humid, salt-laden environment where ordinary steel or low-grade fittings could be more vulnerable to corrosion.

A brass reducing elbow was selected for its brass construction and available surface protection. The fitting provided a suitable connection option for the demanding environmental conditions.

Refrigeration Equipment Maintenance

During air-conditioning maintenance, an existing connection showed thread wear and sealing deterioration.

A replacement fitting was produced according to the required connection dimensions and thread specification. Its threaded interface allowed the maintenance team to replace the worn component without significantly changing the existing pipe arrangement.

Available Sizes

The standard dimensional range includes sizes from 1/8 inch to 4 inches. Reducing combinations can be produced according to the required pipe dimensions.

The table represents commonly requested dimensions. Actual reducing combinations, thread dimensions and pressure ratings should be confirmed before production.

Surface Treatment Options

Natural Brass

Natural brass provides a practical finish for standard indoor HVAC and equipment applications where the fitting is not exposed to aggressive external conditions.

Nickel Plating

Nickel plating can be selected for installations where additional surface protection and a more uniform external finish are required.

Passivation

Passivation treatment can also be considered for applications requiring enhanced surface protection. The appropriate treatment depends on humidity, condensation, salt exposure and installation environment.

OEM and Project Supply

Custom Dimensions

NINGXING supports customized dimensions for applications where standard sizes cannot directly match the customer's equipment.

Customers can provide drawings, samples, pipe measurements or existing fitting specifications for evaluation.

Thread Customization

NPT, BSP, BSPT, metric and other thread specifications can be considered according to the equipment interface.

The thread type, nominal diameter, pitch and sealing requirements should be confirmed before mass production.

Batch Production

NINGXING supports sample development and repeat batch production. Production parameters can be maintained according to confirmed drawings and approved samples, helping distributors and HVAC manufacturers maintain consistency across multiple orders.

FAQ

What Is This Fitting Mainly Used For?

It is designed for HVAC, air-conditioning and refrigeration piping applications where the pipeline needs a 90-degree direction change and connection between different pipe sizes.

Can It Be Used with Copper Tubes?

Yes, suitable configurations can be used with compatible copper tubing and threaded HVAC components. The exact connection method should be confirmed according to the pipe dimensions and fitting design.

Can It Be Used with R410A and R32?

It can be considered for R410A and R32 systems when the fitting's pressure, temperature, material and connection specifications meet the system requirements.

What Is the Maximum Pressure?

The applicable pressure range can reach approximately 16 MPa for suitable configurations. The exact rating depends on size and design and should be confirmed before ordering.

What Thread Standards Are Available?

NINGXING can provide NPT, BSP, BSPT and metric thread configurations according to customer requirements.

Can the Reducing Ratio Be Customized?

Yes. Different inlet and outlet dimensions can be developed according to pipe size, equipment interface and project requirements.

NINGXING Supply Support

For HVAC and refrigeration projects, selecting the correct fitting requires more than simply matching the nominal pipe size. Pipe diameter, thread standard, refrigerant, working pressure, temperature, installation space and surface protection should all be considered.

NINGXING provides the Brass Thickened Air Conditioning Elbow Reducer 90-Degree Male Thread with multiple dimensional and thread options, together with OEM customization and batch production support.

For quotation and technical confirmation, buyers can provide the pipe diameter, thread specification, working pressure, temperature, refrigerant or medium, surface finish and required quantity. NINGXING can then recommend the appropriate configuration for the project.
