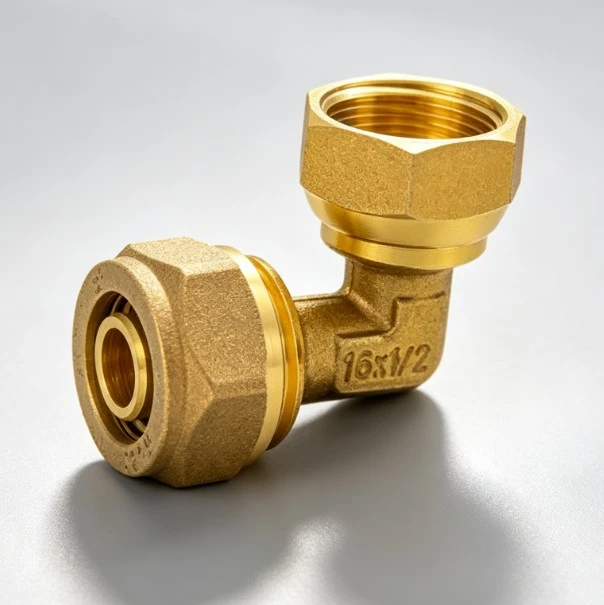

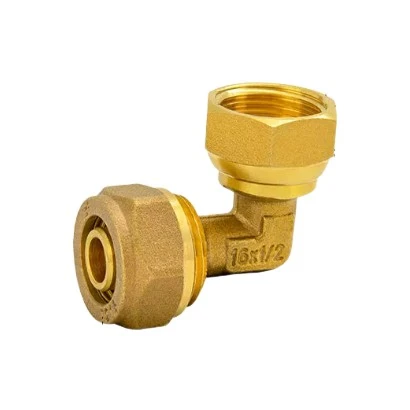

Brass PEX-to-Female Thread Adapter

NINGXING Brass PEX-to-Female Thread Adapter connects PEX tubing with valves, faucets, manifolds, radiators, pumps, and other male-threaded components. It is suitable for domestic water supply, radiant heating, hydronic systems, and general plumbing installations. Common sizes, OEM/ODM services, and bulk-order support are available for distributors and engineering buyers.

Connection Structure

PEX Side

The PEX side can be configured for crimp, clamp, press, expansion, or other compatible connection systems. The pipe should be cut squarely, checked for damage or debris, and inserted to the specified depth.

Before ordering, confirm the PEX outside diameter, wall thickness, connection method, and required installation tool.

Female Thread Side

The female thread connects with male-threaded valves, faucets, manifolds, radiators, and other equipment. BSPP, BSPT, and NPT threads have different profiles and sealing methods, so the required standard must be confirmed in advance.

Parallel threads generally use an O-ring, gasket, or sealing washer, while tapered threads usually require PTFE tape or liquid thread sealant.

Material and Surface Options

Forged Brass Body

Hot forging forms the brass under controlled pressure, creating a dense structure with good mechanical strength and reduced internal porosity. Annealing after forging helps relieve internal stress and improve dimensional stability during machining and installation.

Common material options include CW617N, Brass57-3, and other brass grades. Lead-free brass can be supplied for drinking-water applications where required.

Surface Treatment

Available finishes include polished brass, nickel plating, chrome plating, and other customized treatments. Selection can be based on corrosion protection, appearance, customer preference, and market requirements.

Sealing and Installation

Before installation, cut the PEX pipe at a right angle and remove dirt, burrs, and damaged sections. Insert the pipe fully according to the specified depth and use the correct connection tool.

Clean the threaded side and confirm whether it requires a gasket, O-ring, PTFE tape, or liquid sealant. Do not force mismatched threads together. After assembly, pressure-test the system before insulation, wall closing, or commissioning.

The test pressure and duration should follow the applicable plumbing code and project requirements.

Product Comparison

Selection should consider the pipe material, connection method, thread standard, pressure, temperature, medium, and local regulations.

Application Cases

Family Water Supply Renovation

During a home renovation, Brass PEX to Female Thread Adapter may need to connect with existing shower valves or washbasin faucets. The adapter provides a transition without flame soldering, making it suitable for bathrooms, kitchens, utility rooms, and occupied areas.

The contractor should confirm the PEX size, thread standard, sealing method, and installation space before assembly.

Commercial Floor Heating

In a hotel radiant-floor heating project, multiple PEX loops may need to connect to a manifold with male-threaded outlets. The adapter provides the transition between the flexible heating pipe and the metal manifold.

Correct pipe insertion, tool selection, and pressure testing are essential before the floor structure is closed.

Wholesale Channel Stocking

Plumbing wholesalers may stock common PEX and thread sizes for water supply, heating, renovation, and equipment projects. Less common specifications can be arranged through factory production.

Consistent dimensions, surface quality, packaging, and repeat-order availability help distributors reduce sorting work and maintain compatibility with existing tools and accessories.

Size Selection

Confirm the PEX specification and threaded connection separately. A correct nominal thread size does not guarantee compatibility if the PEX diameter, thread standard, or sealing structure is different.

The following table provides common BSP-style female-thread dimensions for reference. Actual specifications should be verified against the product drawing.

PEX sizes are commonly identified by outside diameter, including 16 mm, 20 mm, 25 mm, and 32 mm. The required connection system may vary by market, so confirm whether the project uses crimp, clamp, press, expansion, or another method.

Pressure and Temperature

The adapter can be supplied with a nominal pressure rating of up to PN25, depending on the material, connection design, and applicable standard. The general working temperature range is -10°C to 120°C.

The final system rating is determined by the lowest-rated component, including the PEX pipe, sealing element, connection ring, valve, and adapter. Suitable media include cold water, hot water, hydronic heating water, and other compatible non-corrosive fluids.

Gas applications require separate confirmation of material, certification, sealing method, and local approval.

Standards and Certification

The threaded interface can be manufactured according to BSP or NPT requirements. Relevant PEX and plumbing standards may include ASTM F1807, DIN 16892, and ISO 15875, depending on the selected connection system and target market.

NINGXING operates under an ISO 9001:2015 quality management system and can provide CE and RoHS certification support. Material certificates and lead-free brass documentation are available for applicable drinking-water projects.

Production and Traceability

Production records can cover the material batch, machining process, surface treatment, final inspection, and packaging. This supports consistent specifications across repeat orders and helps distributors manage replacement parts or project documentation.

Buyers can request batch identification, carton labels, inspection records, material certificates, and shipment documents before production.

Compatibility Review

The complete connection route should be checked before ordering. The PEX pipe, connection ring or insert, installation tool, male-threaded component, sealing element, and available space must be compatible.

Renovation projects may also require an extension, support bracket, swivel component, or additional transition fitting. Drawings, samples, or photos of the existing interface can be provided to NINGXING for preliminary confirmation.

Wholesale and OEM Supply

NINGXING supports OEM/ODM customization for dimensions, thread standards, brass grades, surface finishes, logo marking, packaging, and special connection requirements.

Regular products may support small-batch purchasing, while customized products usually require a quantity based on tooling, material, and processing requirements. Samples can be arranged for specification and installation testing.

FAQ

Which PEX pipes are compatible?

The Brass PEX-to-Female Thread Adapter can be configured for PEX-A, PEX-B, PEX-C, selected PEX-AL-PEX, and PE-RT systems when the connection structure is compatible. Confirm the pipe diameter, wall thickness, and connection method before ordering.

Can it be used for radiant-floor heating?

Yes. It is suitable for compatible PEX radiant-floor and hydronic heating systems within the specified pressure and temperature range.

Can Brass PEX to Female Thread Adapter connect to NPT equipment?

NPT versions can be supplied according to project requirements. BSP and NPT threads should not be mixed.

Does the adapter contain lead?

Standard brass grades may contain lead according to their material specification. Lead-free brass options are available for drinking-water applications and regulated markets.

What warranty is available?

A three-year quality warranty can be provided under agreed storage, installation, and operating conditions. Warranty terms should be confirmed before ordering.

What is the minimum order quantity?

Regular products may support small-batch orders. Customized products require a quantity based on tooling and production requirements. The exact MOQ can be confirmed with the sales team.
