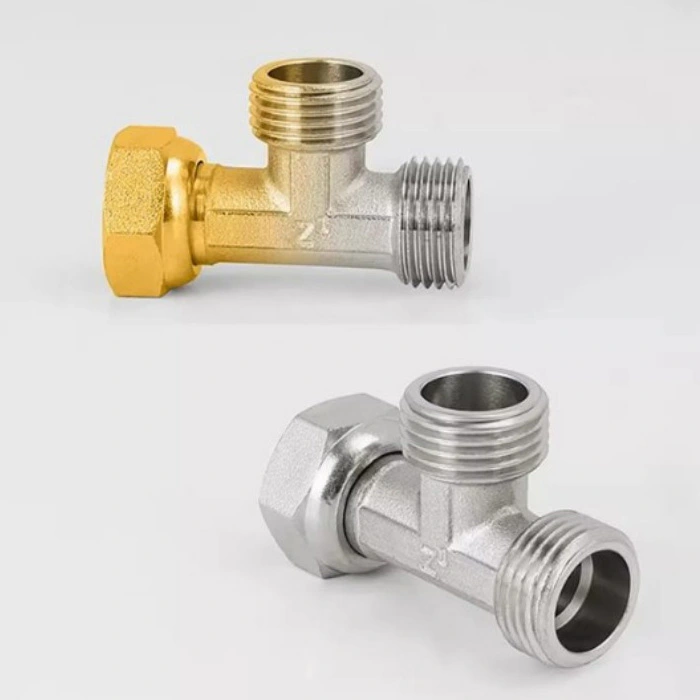

Water Pipe Tee Connector

The Water Pipe Tee Connector supports equal and reducing configurations and can be supplied with G, NPT, or BSP threads according to project requirements. Standard working pressure is up to 1.6 MPa, with a working temperature range of -10°C to 120°C. NINGXING products are manufactured under an ISO9001:2015 quality management system and comply with CE and RoHS requirements.

Connection Design

One Inlet, Two Branches

The T-shaped configuration allows one main pipe to connect with two branch lines. It can be used to create a new branch without replacing the existing main pipeline, helping simplify pipe routing and reduce the number of separate fittings required.

For projects with different pipe diameters, reducing versions are available to connect the main line and branch line directly.

Thread Compatibility

Precision-machined threads provide stable mechanical engagement between the fitting and pipe. Available thread standards include G, NPT, and BSP, while different combinations of male and female threads can be supplied for specific installation requirements.

Before ordering, buyers can confirm pipe diameter, thread standard, connection type, and pressure requirements to select the correct configuration.

Flow & Installation Planning

Compact Pipe Layout

The compact three-way structure is suitable for locations where installation space is limited. Compared with combining several straight fittings and adapters, a single tee can shorten the connection path and reduce unnecessary joints.

This design is useful for water distribution cabinets, equipment connections, wall-mounted piping, and other systems where pipe routing needs to remain organized.

Easy Maintenance

Threaded connections allow the fitting to be removed when maintenance or replacement is required. This makes the product practical for systems where individual branch lines may need to be isolated, repaired, or modified without rebuilding the entire pipeline.

Technical Data

Standard Sizes

Custom sizes, reducing combinations, thread standards, surface finishes, and packaging are available.

Supply Consistency

Batch Control

For projects requiring multiple installation points, consistent dimensions and thread specifications are important. NINGXING controls raw materials, machining dimensions, threading, pressure testing, and final inspection by batch to help maintain product consistency between production lots.

Each production batch is subject to dimensional and sealing inspections before shipment, reducing the risk of installation problems caused by inconsistent fittings.

Bulk Supply

Standard sizes can be supplied for regular stocking requirements, while larger project orders can be arranged according to quantity and specification. OEM packaging, product marking, and customized configurations are also available for qualified orders.

Application Cases

Residential Plumbing

Mr. Zhang was renovating his new house and needed to connect the shower, washbasin, and toilet water lines. Using several individual adapters would have increased the number of connection points and occupied more installation space.

The NINGXING Water Pipe Tee Connector provided a direct three-way connection, simplifying the branch layout and reducing unnecessary joints.

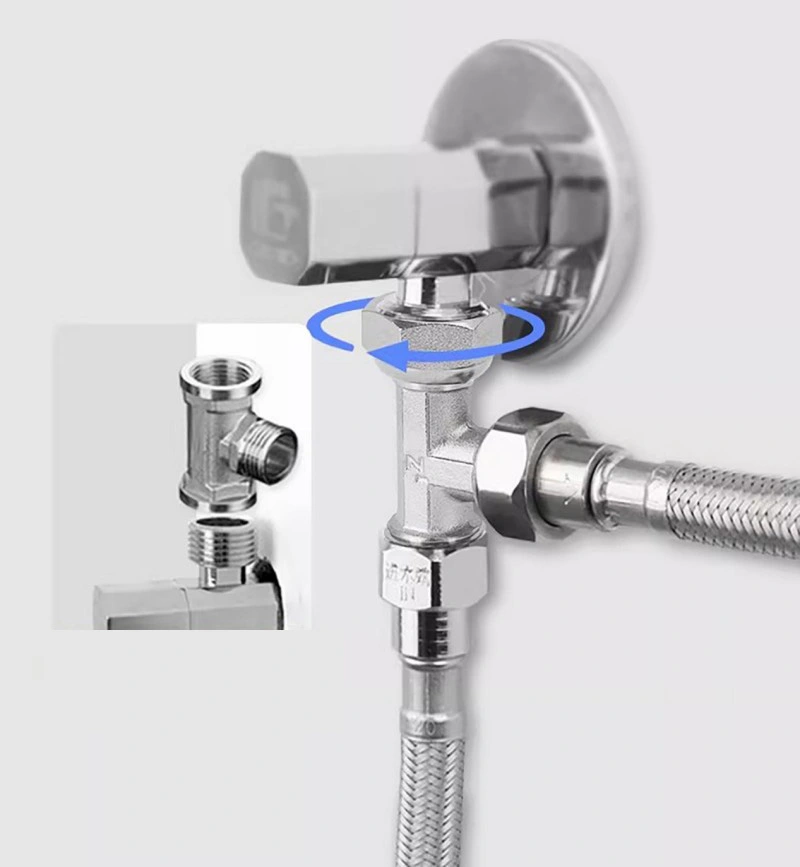

Water Heater & Filtration System

Ms. Li needed to supply both an instant water heater and an RO filtration system from the main kitchen water line. The existing fitting had developed a leakage problem.

After replacement with the NINGXING Water Pipe Tee Connector, the additional branch was connected through the standard threaded interface. The brass construction provided stable performance under repeated hot- and cold-water cycles.

Commercial Plumbing Project

A commercial building project required hundreds of branch connection points. The contractor selected NINGXING fittings for standardized sizes and batch supply.

Using consistent specifications across the project reduced fitting-selection time during installation and helped the construction team complete the pipeline work according to schedule.

Product Comparison

FAQ

What pressure can it handle?

The standard working pressure is up to 1.6 MPa, with a test pressure of at least 2.5 MPa. Actual pressure capability depends on the size, thread configuration, installation method, and operating conditions.

What temperature range is supported?

The standard working temperature range is -10°C to 120°C. For special temperature requirements, technical confirmation is recommended before ordering.

Can different pipe diameters be connected?

Yes. Equal tees and reducing tees are available. Customized combinations can also be produced according to the main pipe and branch pipe dimensions.

Which thread standards are available?

G, NPT, and BSP thread standards are available. Male, female, and mixed-thread configurations can be customized according to the application.

Can NINGXING provide customized products?

Yes. Custom dimensions, thread standards, surface treatments, markings, packaging, and selected OEM/ODM requirements can be discussed according to project specifications.

NINGXING Quality

NINGXING focuses on brass fittings and pipe connection components, combining material control, forging, CNC machining, thread processing, and inspection within an integrated production system.

The Water Pipe Tee Connector is produced under an ISO9001:2015 quality management system and meets CE and RoHS requirements. With standard specifications, customized options, and stable batch supply, NINGXING provides practical connection solutions for plumbing, HVAC, equipment piping, and construction projects.
