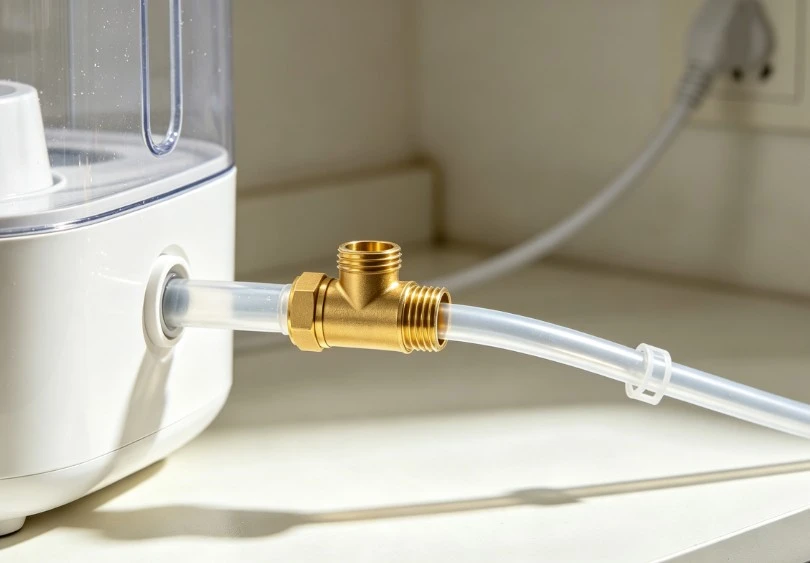

Brass Humidifier Connector

NINGXING Brass Humidifier Connector provides a dependable connection solution for high-pressure misting, industrial humidification, greenhouse irrigation, textile humidity control, outdoor cooling and artificial fog equipment. Its forged brass construction is engineered for stable performance in wet and demanding environments, while precision-machined ports support accurate assembly with compatible tubing, nozzles, pumps and manifolds.

Product Role

The Brass Humidifier Connector joins compatible tubing, mist nozzles, pumps and threaded ports in systems where pressure, vibration and frequent maintenance may affect connection performance.

It is suitable for industrial humidification, textile workshop humidity control, greenhouse misting, high-pressure cooling, artificial fog and outdoor dust suppression. The brass body provides a durable alternative to general-purpose plastic connectors in applications exposed to moisture, pressure and temperature changes.

Standard configurations and customized production based on drawings or samples are available for equipment manufacturers, distributors and system integrators.

Connection Options

Before ordering, confirm the tube material, outside diameter, thread type, working pressure and sealing method. The connector may be configured for copper, PE, nylon or other compatible tubing.

Compression connections are commonly used with rigid copper tubes, while push-in or locking structures may suit PE and nylon tubes when their diameter and wall thickness meet the required specifications.

BSPP and BSPT threads are different and should not be treated as interchangeable. For systems using mist nozzles, pumps or quick couplings, the complete connection chain should be checked rather than selecting the connector by thread size alone.

Sealing Performance

The machined brass body provides a stable sealing surface. Depending on the configuration, sealing may use a ferrule, gasket, O-ring, washer or thread sealant.

BSPP connections generally require a washer, O-ring, gasket or face seal. BSPT connections may require compatible PTFE tape or liquid thread sealant. Sealant should not be used to compensate for damaged or mismatched threads.

The tube must be inserted fully before tightening. Excessive tightening can deform the tube, damage the ferrule or crack the mating port.

Pressure and Environment

Selected configurations can reach a maximum working pressure of up to 150 bar. The actual rating depends on connector size, connection structure, tube material, sealing components, temperature and system design.

For high-pressure mist cooling or industrial humidification, buyers should confirm the working pressure, peak pressure, water temperature and operating cycle before selecting a model.

Brass offers good resistance to general oxidation and atmospheric corrosion, making it suitable for many humid and outdoor environments. Polished or plated finishes may be considered for additional surface protection or appearance requirements.

Strong acids, alkalis, concentrated chemicals, fertilizers, pesticides and special treatment fluids require separate compatibility confirmation.

Application Cases

Textile Workshop Humidity Control

A textile manufacturer experienced high yarn breakage and unstable product quality because workshop humidity was too low. Plastic connectors in the high-pressure misting system aged and cracked, causing leakage and maintenance interruptions.

After replacing the connection points with NINGXING Brass Humidifier Connectors, the system maintained humidity between 65% and 75%, and the yarn breakage rate was reduced by more than 30% according to the supplied case information. The result also depended on tube selection, pump control, nozzle layout and maintenance.

Agricultural Greenhouse Misting

In greenhouse misting systems, brass connectors can help maintain stable connections between water lines and misting components in hot and humid environments.

For systems carrying fertilizers, pesticides or additives, material compatibility should be confirmed before bulk purchasing. Proper filtration is also recommended to reduce nozzle blockage.

Outdoor Mist Cooling

Outdoor mist cooling systems often require repeated cleaning and maintenance. A durable brass connector can help reduce thread wear and maintain sealing performance when installed with the correct tools and torque.

Outdoor installations should protect the connection from impact, freezing water and excessive tube movement.

Artificial Fog and Landscape Systems

The Brass Humidifier Connector can be used between water tubing, distribution manifolds and fog nozzles in parks, commercial spaces and landscape projects when the thread, pressure and tube specifications are compatible.

For large systems, confirm branch flow rates, maintenance access and installation space before selecting the connector.

Size Information

The following dimensions are based on the supplied BSP thread information. Confirm the exact connector configuration, tube size and sealing structure before ordering.

Thread size does not always indicate tube outside diameter. Provide both threaded port size and tube dimensions when ordering. Non-standard tube diameters, branch arrangements and nozzle connections can be produced according to drawings or samples.

Material and Finish

The Brass Humidifier Connector is made from brass selected for machinability, strength and resistance to general oxidation. The supplied material information indicates a copper content of at least 58%; the exact brass grade can be confirmed according to the product specification.

Forging forms the body structure, while CNC turning, milling and drilling support accurate thread and port dimensions. Critical dimensions may be controlled to approximately ±0.01 mm where required by the drawing and production process.

The standard surface can be polished. Electroplating and other surface treatments may be available for selected models.

Installation Check

Before installation, confirm the connector type, tube diameter, thread standard, pressure rating and sealing method. Keep all components clean and free from dust, metal chips and other contaminants.

For compression connections, cut the tube squarely, remove burrs and insert it fully before tightening. For push-in connections, insert the tube completely through the sealing and locking elements, then pull gently to confirm retention.

For threaded connections, identify whether the port is BSPP or BSPT and use the corresponding sealing method. Do not force mismatched threads together.

Route the tube without twisting, sharp bends or excessive tension. High-pressure systems should include independent tube support to reduce load on the connector.

Maintenance Requirements

Depressurize the system before inspection or replacement. Check the connector, tube, ferrule, gasket, O-ring and threaded port for leakage, deformation, corrosion or wear.

If leakage occurs, verify tube insertion, sealing-component position and thread condition before increasing tightening force. Maintain filters in greenhouse and outdoor systems to prevent particles from reaching mist nozzles and small passages.

Replace connectors that are cracked, severely deformed or repeatedly over-tightened.

Quality and Certification

NINGXING controls material selection, forging, CNC machining, surface treatment, dimensional inspection and packaging through a controlled production process. The company operates under an ISO 9001:2015 quality management system.

CE and RoHS compliance are available according to the product configuration, destination market and documentation requirements. Technical drawings, material information and inspection documents can be provided for project evaluation.

OEM and ODM Service

NINGXING supports OEM and ODM production based on customer drawings, samples or technical specifications. Customization may include thread type, tube diameter, connector length, port arrangement, sealing structure, branch configuration, material grade and surface finish.

For quotations, provide the application medium, working pressure, temperature, tube material, tube dimensions, thread standard, quantity and packaging requirements. Non-standard products should be confirmed through a technical drawing or sample before mass production.

FAQ

What is this connector used for?

It connects tubing, mist nozzles, manifolds, pumps and threaded ports in compatible humidification, mist cooling, greenhouse irrigation, artificial fog and dust suppression systems.

Is brass suitable for humid environments?

Yes. Brass offers good resistance to general oxidation and atmospheric corrosion. Chemical exposure and water quality should still be evaluated before selection.

What is the difference between BSPP and BSPT?

BSPP is a parallel thread generally sealed with a washer, O-ring or face seal. BSPT is a tapered thread generally sealed with compatible thread sealant. They are not interchangeable.

Is it suitable for fertilizer or pesticide solutions?

Compatibility must be confirmed before use because some chemicals may affect brass, seals or tubing.

How can leakage be prevented?

Use the correct tube size, insert the tube fully, select the proper sealing component, match BSPP or BSPT correctly and avoid excessive tightening.
