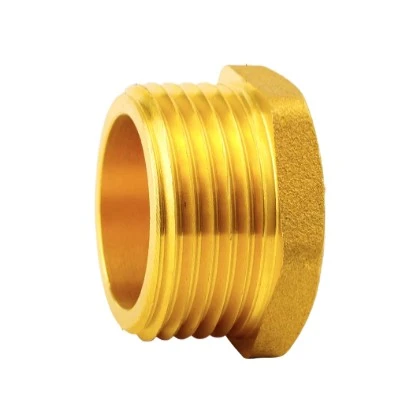

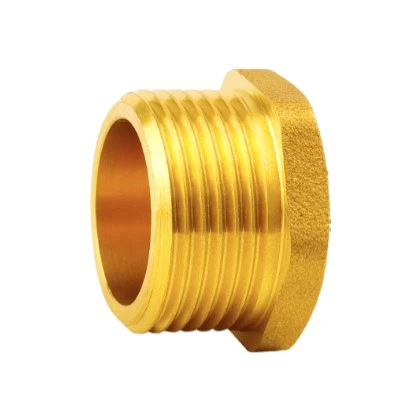

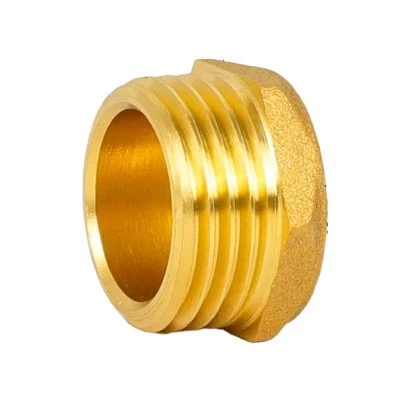

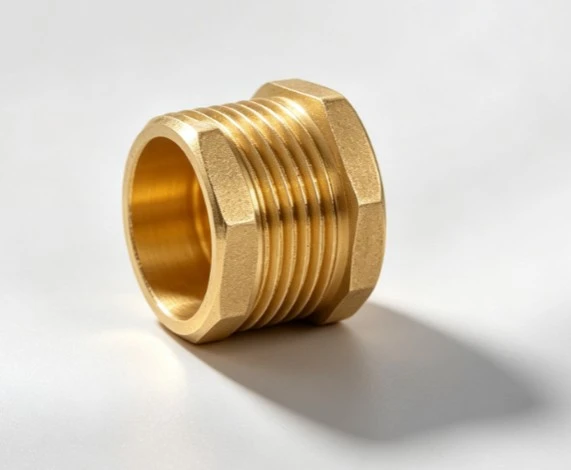

Brass Male Thread Pipe Plug

The Brass Male Thread Pipe Plug is designed to close female-threaded pipe ends, equipment ports, and unused outlets. Made from brass and precision machined with external threads, it provides a practical solution for sealing water, air, gas, HVAC, and general industrial piping systems.

The plug is available with hexagonal or square heads for wrench installation. NINGXING supports NPT, BSPT, BSPP, and other thread standards, with OEM/ODM options for non-standard sizes and configurations.

Material and Machining

NINGXING manufactures the product using brass bar stock or forged brass blanks, followed by CNC machining. The process provides consistent thread geometry, dimensional accuracy, and a smooth surface suitable for threaded connections.

Each production batch is inspected for thread size, pitch, head dimensions, and overall dimensions. Different surface finishes, including natural brass and polished or plated options, can be supplied according to application requirements.

Application Examples

1. Building Water Piping

A residential construction project needed to close several unused water outlets during installation. The contractor selected 1/2-inch NPT plugs and used PTFE tape on the external threads. After installation, the connections remained leak-free during a 24-hour water pressure test.

2. Industrial Equipment

A machinery manufacturer needed to seal terminal ports on an air compressor system during maintenance. A 3/4-inch brass plug was selected to match the existing female-threaded connection, preventing pressure loss and contamination during servicing.

3. HVAC Systems

During a commercial central air-conditioning project, several threaded refrigerant-line ports required temporary sealing before commissioning. The installation team used 3/8-inch brass plugs and completed a pressure-holding test without leakage at the threaded connections.

Product Testing

Before shipment, products can undergo dimensional and thread inspection using appropriate gauges and measuring equipment. Thread testing verifies compatibility with the specified standard, while dimensional inspection checks critical machining dimensions.

For applications requiring sealing verification, hydrostatic pressure testing or suitable gas leak testing can be arranged according to the customer's requirements.

NINGXING operates under ISO 9001:2015 and provides CE and RoHS certification or compliance documentation for applicable products.

Reference Specifications

Thread options: NPT, BSPT, BSPP, and customized thread configurations.

Temperature: Typical service temperature can range from approximately -50℃ to +150℃, depending on material, pressure, thread type, and application. 150℃ should not be treated as a universal continuous operating temperature; continuous operation near this limit should be confirmed according to the specific model.

Pressure: Pressure capability varies by size, thread standard, temperature, and system conditions. The applicable pressure rating should be confirmed from the product specification before use.

Product Comparison

Installation Guide

1. Thread Matching

Confirm the thread standard and size before installation. NPT, BSPT, and BSPP should not be treated as interchangeable. The plug must match the female thread of the pipe or equipment port.

2. Sealing

Clean the connection before installation. Apply a suitable PTFE tape or thread sealant when required by the thread type and system design. Tighten by hand first and finish with an appropriate wrench without excessive force.

3. Leak Check

After installation, test the connection according to the system requirements. Water systems can use hydrostatic testing, while gas systems require an appropriate leak-detection method.

Common Installation Errors

1. Incorrect Thread Matching

A common mistake is selecting a plug based only on nominal size without checking the thread standard. NPT, BSPT, and BSPP threads can have similar nominal dimensions but different thread profiles. Always confirm both the thread type and size before installation.

2. Over-Tightening

Excessive tightening can damage the brass thread or deform the fitting, especially when using a long wrench. Tighten the plug firmly with a suitable wrench while following the recommended torque for the specific connection.

3. Insufficient Sealing

Installing a threaded plug without the required sealing method may result in leakage. Use a suitable PTFE tape or thread sealant when required by the thread design and application. For tapered threads, ensure the sealant is applied correctly and evenly.

4. Cross-Threading

If the plug is forced into the port at an incorrect angle, the threads may become damaged. Start the connection by hand and rotate it several turns to confirm smooth engagement before using a wrench.

5. No Leak Testing

A connection that appears tight does not necessarily guarantee a leak-free system. After installation, perform an appropriate hydrostatic or gas leak test before placing the piping system into normal service.

FAQ

What is this plug used for?

It is used to close female-threaded pipe ends, equipment ports, and unused outlets in plumbing, HVAC, gas, pneumatic, and industrial systems.

Which thread standards are available?

NPT, BSPT, and BSPP are commonly available. Other thread standards can be supplied according to project requirements.

What pressure can it withstand?

The pressure rating depends on the specific size, material, thread, temperature, and application. Please confirm the technical specification for the selected model.

What temperature can it handle?

Depending on the configuration, the typical range can reach approximately -50℃ to +150℃. Continuous operation at the upper limit requires confirmation of the applicable pressure-temperature rating.

Can it be customized?

Yes. NINGXING supports OEM/ODM production for special thread combinations, dimensions, head designs, and surface finishes.

How do I choose the correct size?

Check the female thread size and standard of the port first. For example, a 1/2-inch NPT female port requires a matching 1/2-inch NPT external-thread plug.

NINGXING Manufacturing

NINGXING supplies brass threaded fittings for plumbing distributors, equipment manufacturers, contractors, and industrial projects. Production and inspection are carried out according to agreed specifications, with support for samples, bulk orders, and customized requirements.

For quotation or technical confirmation, provide the required thread standard, size, material, surface finish, quantity, and application conditions.
