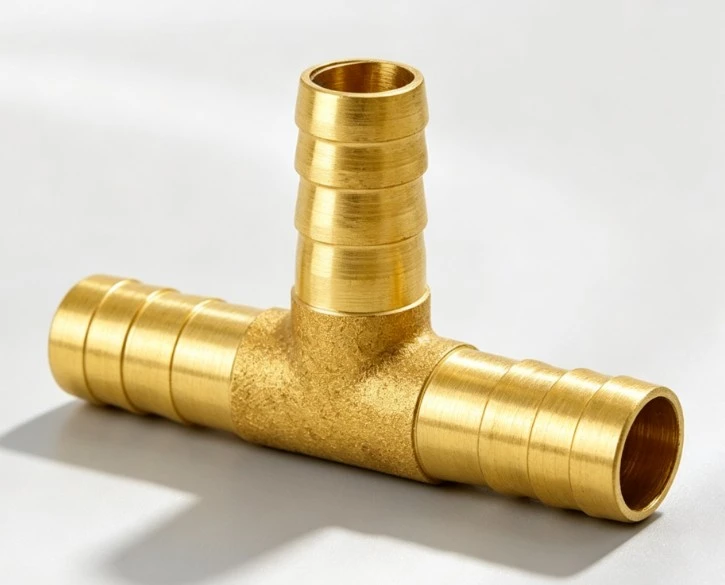

Brass T-Type Hose Barb Connector

A Brass T-Type Hose Barb Connector barb fitting creates a side branch from a main hose at approximately 90-Degrees. It can divide one supply line into two outlets or combine two branch lines into one main line, depending on the installation direction.

Unlike a Y-shaped fitting, its branch outlet is perpendicular to the main passage. This makes it suitable for layouts requiring a fixed branch direction or a connection near an equipment port.

Each outlet has raised barbs that hold the hose in place after installation. A compatible clamp or ferrule can improve retention and sealing in systems exposed to pressure changes, vibration, or temperature variation.

T-Type Barb Compared with Other Hose Fittings

Select the fitting according to the required branch direction, hose routing, available space, hose internal diameter, pressure, temperature, fluid medium, and thread standard.

Brass Material and Manufacturing Process

The fitting is produced from brass bar stock or forged brass blanks, depending on the design and production volume. Brass offers good machinability, strength, corrosion resistance, and dimensional stability for general fluid connection applications.

H59 and CW617N brass grades can be considered for different project requirements. The final material should match the fluid medium, operating temperature, pressure, regulations, and customer specifications.

For selected models, NINGXING combines hot forging with CNC machining. Forging forms a stable base, while CNC turning, drilling, milling, and thread machining control the final dimensions. This process supports consistent barb geometry, smooth hose contact surfaces, and accurate threads.

Hose Compatibility and Connection Security

The hose internal diameter must match the barb diameter. A suitable hose should fit over the barb with moderate force and remain seated against the fitting shoulder.

In pressurized or vibrating systems, install a compatible clamp above the barb area. The clamp type should match the hose material, pressure, temperature, and installation environment.

Cut the hose squarely before installation. Do not reuse hoses that are cracked, hardened, swollen, or deformed.

Applications and Customer Use Cases

The Brass T-Type Hose Barb Connector is suitable for compatible water, air, fuel, oil, coolant, inert gas, and other general fluid routing applications. Common uses include agricultural equipment, automotive systems, marine assemblies, pneumatic equipment, machinery, water circulation, and maintenance projects.

Agricultural Irrigation

In greenhouse and open-field irrigation systems, a main water hose may need to supply two crop zones. The fitting creates a 90-degree branch, allowing water to reach both areas without several separate connectors.

When the hoses are fully seated and secured with clamps, the connection can help limit leakage during normal pressure fluctuations.

Automotive and Marine Fuel or Cooling Systems

An automotive workshop used a T-shaped connection to add an auxiliary coolant circuit in a limited engine compartment. The perpendicular branch connected the additional hose without replacing the existing routing.

Similar layouts can be used in marine fuel or cooling systems. Brass is compatible with many common oils and coolants, but the complete hose assembly should be checked for media and temperature compatibility.

Pneumatic Equipment and Air Compressors

In pneumatic control circuits and air compressor systems, a main air hose may need to supply a secondary actuator or control component. The fitting provides a direct side branch while keeping the main route easy to identify and maintain.

The pressure rating depends on the fitting size, hose construction, connection method, and operating conditions.

Problems Addressed by the T Configuration

A T-type connection allows a side outlet to be added without replacing a long section of existing hose. Its one-piece structure can also reduce the number of connectors in a simple three-hose arrangement.

The fixed 90-degree outlet is useful when the branch direction must remain consistent. A Y-type fitting is more suitable for angled or smoother hose routing.

For repeated orders, consistent barb dimensions and thread quality are important for hose compatibility. NINGXING uses CNC machining and batch inspection to support stable production.

Available Sizes

The following dimensions are reference values for BSP/G threaded specifications. Final dimensions should be confirmed against the selected product drawing.

These figures cover thread dimensions only. Barb diameter, overall length, branch position, and outlet combination depend on the selected model. Unequal outlet sizes are available for hoses with different internal diameters.

Working Pressure and Temperature

The reference working temperature range is approximately -40°C to +71°C (-40°F to 160°F). Selected standard configurations have a reference working pressure of approximately 1.6 MPa (232 psi).

Actual limits depend on the fitting size, brass grade, hose material, clamp or ferrule, fluid medium, and installation method. Buyers should provide operating pressure, temperature, fluid type, hose specification, and service conditions for technical confirmation.

Surface Treatment Options

Natural polished brass is suitable for many general industrial and maintenance applications. Nickel plating and chrome plating are available when additional surface protection, appearance, or easier cleaning is required.

Select the finish according to moisture, condensation, salt exposure, chemical contact, and equipment appearance requirements.

Quality Management and Inspection

NINGXING manages material preparation, forging where applicable, CNC machining, thread processing, surface treatment, inspection, and packing. Inspection may cover barb diameter, outlet dimensions, thread accuracy, surface condition, and appearance.

Pressure testing, dimensional reports, material documentation, and batch inspection can be arranged according to customer requirements.

NINGXING operates under ISO 9001:2015. Applicable products can be supplied with CE and RoHS documentation according to the destination market and project requirements.

OEM and ODM Manufacturing

Custom production is available for non-standard outlet diameters, unequal T configurations, NPT, NPTF, BSP, and other thread requirements. Customers can also request polished, nickel-plated, or chrome-plated surfaces, logo marking, and customized packaging.

For an accurate quotation, provide the hose internal diameter for each outlet, thread standard, working pressure, temperature, fluid medium, quantity, surface finish, and packaging requirements. Drawings or physical samples can be used for evaluation.

Lead time depends on the material, machining requirements, surface treatment, quantity, and packaging configuration.

Installation and Maintenance

Confirm that the hose internal diameter matches the barb size and that the hose is suitable for the intended medium and operating conditions. Cut the hose cleanly and remove debris from the inner wall.

Push the hose fully over the barb, then install a compatible clamp above the barb area. Tighten it according to the clamp manufacturer's instructions without over-tightening.

During maintenance, inspect the connection for leakage, hose movement, cracking, swelling, hardening, abrasion, and corrosion. Replace deteriorated hoses instead of relying only on additional clamp tightening.

Frequently Asked Questions

What fluids can it handle?

It can be used with compatible air, water, fuel, oil, coolant, inert gas, and other general-purpose fluids. Strong acids, strong alkalis, and highly corrosive media require a separate compatibility review.

How should the hose be secured?

Push the hose completely over the barb and use a suitable clamp or ferrule when required. The hose internal diameter must match the barb diameter.

When should I choose a T-type fitting?

Choose it when a main hose needs a side branch at approximately 90-Degrees or when the branch direction must be clearly defined.

What is the difference between a T-type and Y-type fitting?

A T-type fitting creates a perpendicular branch, while a Y-type fitting provides angled outlets for smoother routing. The choice depends on space, bending requirements, and hose direction.

Can the three outlets have different sizes?

Yes. NINGXING can produce unequal outlet configurations for hoses with different internal diameters.

What are the pressure and temperature limits?

The reference temperature range is approximately -40°C to +71°C, and the reference pressure for selected configurations is around 1.6 MPa. Actual limits depend on the complete fitting, hose, clamp, fluid, and installation conditions.

Can samples be provided?

Samples can be supplied for dimensional checking, hose compatibility testing, and application evaluation.

Can the fitting be customized?

Yes. Custom options include outlet dimensions, unequal configurations, NPT/NPTF/BSP threads, surface finishes, logo marking, and packaging.

What certifications are available?

NINGXING operates under ISO 9001:2015. Applicable products can be supplied with CE and RoHS documentation according to the product specification and destination market.

Bulk Supply from NINGXING

NINGXING supplies CNC-machined brass hose fittings for distributors, equipment manufacturers, engineering contractors, and industrial maintenance buyers. The Brass T-Type Hose Barb Connector is available in standard sizes and can be adapted for different hose diameters, thread standards, surface treatments, and packaging requirements.

Buyers can confirm technical details, inspection requirements, delivery schedules, and documentation before placing a bulk order.

Product Information at a Glance

The Brass T-Type Hose Barb Connector is designed for three-hose connections requiring a 90-degree side branch. Its brass construction, precision-machined outlets, size options, and OEM/ODM support make it suitable for irrigation, automotive cooling, marine systems, pneumatic equipment, machinery, and general fluid transfer.

For product drawings, samples, pricing, or customized specifications, contact NINGXING with the hose dimensions and operating conditions of your application.
