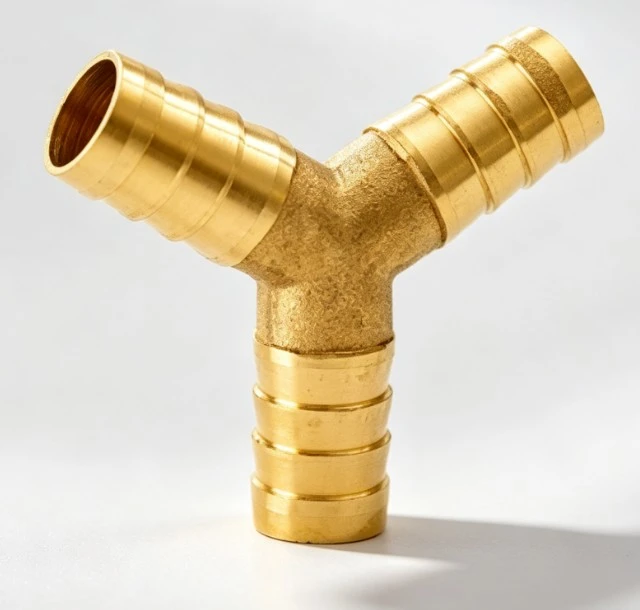

Brass Y-Type Hose Barb Connector

The Brass Y-Type Hose Barb Connector design divides one hose into two branches or combines two lines into one. Its angled outlets help create a smoother routing path and reduce sharp bends in confined installation areas.

Raised barbs hold the hose in place after installation. For pressurized applications, a suitable clamp should be fitted above the barb area. Unequal outlet diameters can also be produced when the connected hoses have different internal diameters.

Y-Type Barb vs. T-Type Barb vs. Straight Barb

Selecting the correct hose barb configuration depends on the required flow direction, available installation space, and whether the system needs to branch, join, or extend a hose line.

The Y-type configuration is generally preferred when the two branch hoses need to follow angled or parallel routing paths. A T-type fitting may be more suitable when a perpendicular side outlet is required. A straight barb should be selected when the objective is to join two hose sections without changing the flow direction.

The final choice should also consider hose internal diameter, working pressure, temperature, fluid compatibility, clamp selection, and available installation space.

Material Selection and Machining

The fitting is machined from brass bar stock, offering good machinability, corrosion resistance, strength, and dimensional stability. H59 and CW617N are available depending on the application.

CNC machining helps maintain consistent barb dimensions, smooth connection surfaces, and reliable hose installation. Final material selection should consider the fluid medium, pressure, temperature, and applicable standards.

Hose Retention and Sealing

The hose internal diameter must match the barb size correctly. A properly fitted hose should require moderate installation force and remain securely positioned at the base of the barb.

For pressurized systems, use a compatible clamp to reduce the risk of movement or leakage caused by pressure changes, vibration, or thermal expansion. Before installation, cut the hose squarely and check for cracks, deformation, or aging.

Applications

The Brass Y-Type Hose Barb Connector is suitable for compatible water, air, fuel, oil, coolant, and other general fluid routing applications. Common uses include agricultural equipment, vehicle cooling systems, machinery, water circulation, marine equipment, and maintenance assemblies.

Agricultural Irrigation

A farm used the fitting to divide one main irrigation hose into two crop-zone branches. The brass construction provided suitable outdoor corrosion resistance, while the barb-and-clamp connection remained leak-free during six months of operation.

Automotive Cooling Systems

An automotive workshop installed the fitting in a confined engine compartment to create an auxiliary coolant circuit. Its compact angled design helped route the hoses without excessive bending, and no leakage was observed during high-load testing.

Marine Drainage

A marine maintenance company used the fitting to divide a yacht's bilge drainage line toward outlets on both sides of the vessel. The compact Y configuration reduced sharp bends, and hose clamps provided additional retention.

Available Sizes

The following dimensions are common reference values for BSP/G threaded specifications. Confirm final dimensions against the selected model drawing.

Custom outlet diameters and unequal Y configurations are available.

Working Conditions

The standard reference rating is up to 1.6 MPa working pressure and approximately -20°C to +120°C working temperature.

Actual limits depend on the fitting size, brass grade, hose construction, clamp, fluid medium, and installation method. Applications near these limits should be reviewed before ordering.

Surface and Finish Options

Natural polished brass is suitable for many general industrial applications. Nickel plating is available when additional surface protection or a different appearance is required. Finish selection should consider moisture, condensation, and corrosive exposure.

Quality Control

NINGXING controls material preparation, CNC machining, finishing, inspection, and packing. Inspection covers barb geometry, outlet dimensions, and threaded sections where applicable. Pressure testing and batch inspection can be arranged according to product and customer requirements.

The company operates under ISO 9001:2015 and provides applicable CE and RoHS documentation.

OEM and Custom Manufacturing

Custom options include outlet dimensions, unequal Y configurations, thread standards, surface finishes, logo marking, and packaging. Customers can provide drawings, samples, or technical specifications.

For quotation, provide the hose internal diameter, connection dimensions, working pressure, temperature, fluid medium, quantity, finish, and thread standard.

Installation and Maintenance

Cut the hose cleanly and inspect it before installation. Push it fully over the barb, then position and tighten a suitable clamp according to the clamp manufacturer's instructions. Avoid excessive tightening, which may damage the hose.

During maintenance, check for cracking, swelling, hardening, abrasion, or deformation. Replace deteriorated hoses instead of relying only on additional clamp tightening.

Frequently Asked Questions

What fluids can it handle?

It can be used with compatible water, air, fuel, oil, coolant, and other general-purpose fluids. Strong acids, strong alkalis, and highly corrosive media require compatibility evaluation.

How should the hose be secured?

Push the hose fully onto the barb and use a suitable clamp when required. The hose internal diameter must match the barb size.

How do I choose between a Y-type and T-type hose barb?

Choose a Y-type fitting when two branch hoses need to follow angled or smoother routing paths. Choose a T-type fitting when a perpendicular 90-degree branch is required. The available space and hose routing direction should be considered before selection.

When should I use a straight hose barb?

A straight hose barb is suitable when two hose sections need to be connected in a continuous line without branching or changing the routing direction.

How do I choose the correct size?

Select the fitting according to the hose internal diameter, not only its external diameter. For hoses with different internal diameters, request an unequal Y configuration.

What are the pressure and temperature limits?

The standard reference range is up to 1.6 MPa and approximately -20°C to +120°C. Confirm the actual rating for the complete fitting and hose assembly.

Can samples be provided?

Samples are available for testing and dimensional verification. Lead time for bulk orders depends on quantity and customization requirements.

Can the fitting be customized?

Yes. NINGXING supports custom dimensions, outlet combinations, thread standards, finishes, logo marking, and packaging.

Why Choose NINGXING for Bulk Supply

NINGXING provides CNC-machined brass hose fittings with controlled dimensions, batch inspection, material options, and OEM/ODM support. The Brass Y-Type Hose Barb Connector is available for standard fluid routing systems and customized hose assemblies.

Product drawings, samples, packaging requirements, and compliance documents can be discussed for wholesale and OEM projects.

Product Information at a Glance

The Brass Y-Type Hose Barb Connector provides a compact three-way connection for flexible hoses. Its brass construction, barb retention design, size options, and customization support make it suitable for agricultural, automotive, marine, machinery, and general fluid routing applications.
