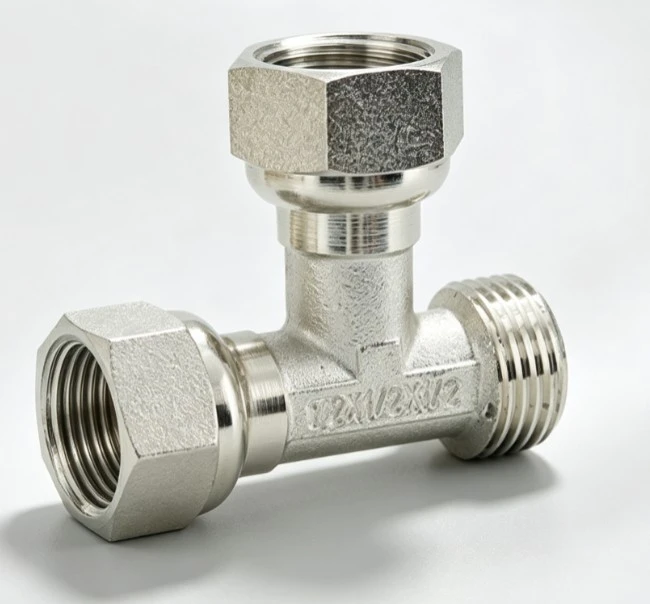

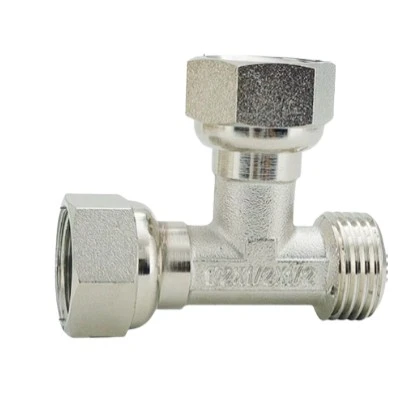

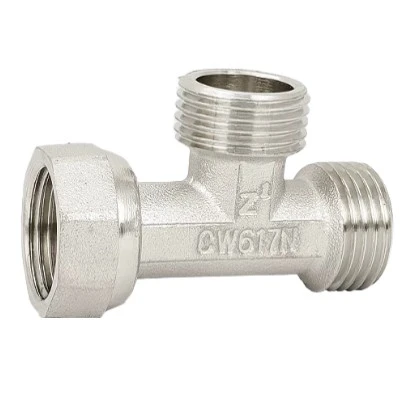

Electroplated Brass Three-Way Male-Female Union

The Electroplated Brass Three-Way Male-Female Union is used for branching pipelines and connecting components with different thread types. The union section allows alignment and removal without rotating the entire pipe.

The fitting is manufactured through brass forging, precision machining, polishing and electroplating. It is suitable for water, plumbing and HVAC systems. Actual pressure and temperature limits depend on the size, thread configuration, sealing method, medium and final technical specification.

Connection and Sealing

Available configurations include female-male-male, male-female-male and female-male-female. Select the correct configuration according to the pipeline layout and installation space.

Before installation, confirm whether the connection uses tapered or parallel threads.

Tapered Thread Sealing

Tapered threads tighten through interference and normally require thread sealant.

Clean and dry both threads before assembly. Confirm the thread standard and size, then apply approved PTFE tape or sealant in the tightening direction. Keep the first thread free of sealant to prevent material from entering the pipeline. Tighten the connection by hand first, then use a suitable wrench. Stop when the connection is correctly aligned and sealed, and avoid excessive torque.

Gas systems must use approved sealants and comply with local regulations.

Parallel Thread Sealing

Parallel threads normally require a gasket, sealing washer, O-ring or bonded seal.

Position the sealing element correctly and keep the sealing face clean and undamaged. Do not rely on PTFE tape alone unless the product specification permits it. Tighten the connection until the sealing element is properly compressed, while avoiding excessive torque.

Align the union before tightening. Do not use the union nut to correct severely misaligned pipes.

Performance Parameters

These values are reference parameters, not universal ratings. Actual performance is affected by pressure, temperature, medium, vibration, installation torque and sealing method.

Product Comparison

This Electroplated Brass Three-Way Male-Female Union is suitable when a project requires a three-way branch, different threaded interfaces and convenient future removal.

Surface Protection and Electroplating Process

The electroplated finish improves corrosion resistance, wear resistance and appearance. The reference plating thickness is approximately 3–20 μm, subject to the final specification.

The typical process includes surface preparation, removal of burrs and defects, degreasing, cleaning, surface activation, rinsing, electroplating under controlled conditions, neutralization, final rinsing, drying and inspection.

The finished surface is inspected for coverage, adhesion, peeling, blistering, scratches and other visible defects. Threaded areas and internal passages require special control because excessive plating may affect thread engagement or opening size. Avoid deep scratches, aggressive chemicals and excessive abrasion during use.

Size Selection

Confirm the pipe size, thread standard, male or female interface and installation dimensions before ordering.

The listed dimensions are for reference. Confirm the actual thread standard and product drawing before ordering. G, BSP, NPT and other thread systems are not automatically interchangeable.

Quality Control

NINGXING controls forging, CNC machining, polishing, electroplating and final inspection. Key inspection points include thread dimensions, opening diameter, wall thickness, sealing surfaces, union alignment, plating appearance, plating adhesion, pressure or leak performance, batch traceability and packaging.

The manufacturer operates under ISO9001:2015 and can provide CE and RoHS compliance according to the applicable product requirements.

Application Examples

Scenario One: Kitchen Gas Pipeline Replacement

Ms. Zhang replaced her three-year-old gas stove hose with a 1/2-inch electroplated brass three-way male-female union. The female thread connected to the angle valve, the male thread connected to the hose, and the union section simplified installation. A soap-water test showed no bubbles after replacement.

Gas installations must follow local safety regulations and be completed by qualified professionals where required.

Scenario Two: Household Water System Modification

Mr. Li used a 1/2-inch brass three-way union to divide one kitchen water connection into two outlets for a sink faucet and dishwasher.

Confirm that the fitting’s pressure and temperature ratings meet the water system requirements.

Scenario Three: Water Heater Installation and Maintenance

During a water heater replacement, Mr. Wang replaced a corroded fitting with an electroplated brass three-way union. The union design made alignment easier, and the pressure test remained stable after installation.

Confirm the temperature, pressure and sealing-material requirements before use.

Scenario Four: Water Purification Equipment Connection

The fitting can divide a main water line into separate outlets for water purifiers, water softeners and other treatment equipment without replacing the existing pipeline.

Confirm material compatibility with the water quality and connected equipment.

Installation Considerations

Shut off and drain the pipeline when necessary. Clean the threads and confirm whether the connection is tapered or parallel before selecting the sealing method.

Use approved sealant for tapered threads and the specified gasket, washer or O-ring for parallel threads. Tighten with a suitable tool and avoid excessive torque. Support the pipe to prevent bending loads, align the union before tightening and do not use the union nut to correct severe misalignment.

After installation, perform a pressure or leak test according to the applicable system standard. The reference working pressure of up to 1.6 MPa does not replace the required testing procedure.

Gas systems must comply with local safety requirements and should be tested by qualified personnel where required.

Wholesale Supply

NINGXING supports bulk orders for wholesalers, distributors, engineering projects and OEM customers. Available options include different sizes, thread combinations, plating specifications and packaging.

The final quotation depends on specification, order quantity, plating, packaging and customization. Before production, confirm the nominal size and thread standard, male-female configuration, brass material, pressure and temperature requirements, plating type and thickness, sealing structure, packaging and labeling, inspection requirements and certification documents.

FAQ

Q1: What applications are suitable for this fitting?

A: It is mainly used in water piping, plumbing, HVAC and other threaded fluid systems. Gas applications require suitable specifications and local compliance.

Q2: What is the reference working pressure?

A: Up to 1.6 MPa for suitable standard configurations. The final rating depends on size, temperature, medium and sealing method.

Q3: What is the working temperature range?

A: Approximately -20°C to 120°C. Confirm the final rating for hot water, gas or special media.

Q4: What is the difference between tapered and parallel threads?

A: Tapered threads normally require thread sealant, while parallel threads usually require a gasket, washer, O-ring or sealing face.

Q5: Can PTFE tape be used on every connection?

A: No. Use it only when permitted by the thread design and application. Parallel threads generally require a separate sealing element.

Q6: What is the advantage of the male-female configuration?

A: It connects components with different thread types and may reduce the need for additional adapters.

Why Choose NINGXING

NINGXING provides brass pipe fittings for plumbing, water, gas and HVAC applications. Its integrated forging, machining, polishing and electroplating processes help control dimensions, thread accuracy and surface quality.

The Electroplated Brass Three-Way Male-Female Union combines three-way branching, flexible threaded connections and a removable union structure. With multiple size options and customizable plating specifications, it is suitable for installation, maintenance and bulk supply projects.
