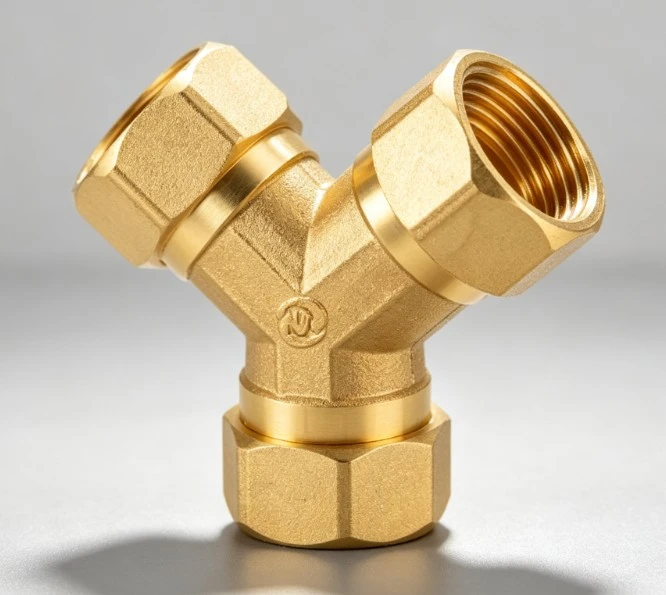

Brass Y-Type Female Thread Connector

The Brass Y-Type Female Thread Connector is a three-way fitting with one inlet and two outlets. Its angled Y-shaped passage helps reduce abrupt flow changes and is suitable for compressed air, water, oil, steam and selected gas applications.

All three ports are female threaded and can connect to male-threaded pipes, valves, gauges, hoses or adapters. Available thread standards may include NPT, BSP, BSPT and G. These standards are not interchangeable, so the final specification must be confirmed before ordering.

The body is available in natural brass or nickel-plated brass. Nickel plating improves surface protection and appearance in humid environments.

Flow Path Design

The Y-shaped passage divides one inlet into two angled branches. Compared with a sharp 90-degree tee, it can provide a smoother flow transition and lower local turbulence in suitable systems.

Actual flow performance depends on the internal passage, branch angle, flow rate, medium and pipe layout. For high-flow or critical applications, request the product drawing and flow data before selection.

The Brass Y-Type Female Thread Connector can also combine two inlets into one outlet when permitted by the system design.

Y Type vs. T Type Connector Comparison

A Y-Type is not always better than a T type. The final choice depends on flow requirements, space, pipe alignment and system design.

Thread Compatibility

The Brass Y Type Female Thread Connector may be supplied with NPT, BSP, BSPT or G threads. NPT and BSPT are tapered threads, while G threads are parallel. Their dimensions and sealing methods differ.

Confirm the thread standard, size, pitch and sealing method before ordering. Customized thread combinations or adapters may be available for mixed-standard systems.

Material Options

The standard body is made from brass, offering good strength, machinability and resistance to common water and air environments.

Natural brass is suitable for general plumbing and equipment connections. Nickel-plated brass provides improved surface protection and appearance in humid or corrosive environments.

Material selection should consider the medium, temperature, pressure, water quality and applicable regulations.

Manufacturing Process

NINGXING manufactures the connector through brass forming, precision machining, deburring, cleaning, polishing and optional electroplating.

CNC machining controls the internal threads, port dimensions and sealing surfaces. Internal passages are checked for burrs and residue. For nickel-plated products, surface preparation and coating inspection help improve plating adhesion and appearance.

Performance Parameters

These values are for reference only. The final rating depends on size, medium, temperature, sealing method and installation conditions.

Size Selection

Confirm the pipe size, thread standard, connection type, installation space and required flow capacity before ordering.

These dimensions are reference values based on G threads. NPT, BSPT and other standards may differ. Confirm the final product drawing before production or installation.

Application Examples

Scenario One: Compressed Air System Branching

A vehicle manufacturing plant needed to divide one main air-supply line into several branch lines. The brass Y connector provided an angled layout and stable threaded connections, helping keep the piping compact and organized.

Scenario Two: Cooling Water Circulation

An electronics manufacturer used nickel-plated brass Y connectors to distribute chilled water to several pieces of equipment. The surface treatment provided additional protection in the humid operating environment.

Scenario Three: Natural Gas Branch Line

A gas company used forged brass Y connectors to divide a main gas pipeline into residential branch lines. The fitting provided a strong body and stable threaded connections.

Gas applications must comply with local regulations and use approved products, sealants and qualified installers.

Scenario Four: Hydraulic Oil Distribution

An engineering machinery manufacturer used the connector to divide hydraulic oil from a main pump line to several actuators. The application required confirmation of pressure rating, oil compatibility, vibration conditions and sealing method.

Installation Method

Shut off and drain the pipeline when necessary. Clean all threads and check for damage, contamination or burrs.

For tapered threads, apply approved thread sealant or PTFE tape in the tightening direction. Keep the first thread free of sealant. For parallel threads, use the specified gasket, washer, O-ring or bonded seal.

Start the connection by hand, then tighten with a suitable wrench. Do not exceed the recommended torque or force misaligned pipes into position. Support connected pipes to reduce stress on the fitting.

After installation, perform a pressure or leak test according to the applicable system standard.

Quality Inspection

NINGXING inspects material, forming, machining, internal passages, threads, branch alignment, surface finish and plating quality.

Pressure or leak testing, batch traceability, packaging inspection and labeling checks can be arranged according to order requirements. NINGXING operates under ISO9001:2015 and can provide CE and RoHS documents where applicable.

Wholesale Supply

NINGXING supports bulk orders for wholesalers, distributors, equipment manufacturers, plumbing contractors and OEM customers.

Available options may include different sizes, thread standards, brass grades, surface finishes, packaging methods and labels. The final quotation depends on specification, quantity, plating, packaging and customization.

Samples can be arranged for compatibility testing before bulk production.

FAQ

Q1: What is the main function of this connector?

A: It divides one pipeline into two branches or combines two lines into one, depending on the system design.

Q2: Are all three ports female threaded?

A: Yes. The standard configuration is female-female-female. The thread standard and size must be confirmed before ordering.

Q3: Which thread standards are available?

A: NPT, BSP, BSPT and G threads may be available. These standards are not automatically interchangeable.

Q4: What is the difference between a Y type and a T type connector?

A: A Y-Type uses angled branches for a smoother flow transition, while a T type normally uses a 90-degree branch and is often easier to install in perpendicular layouts.

Q5: What is the reference pressure rating?

A: Up to 60 bar, depending on size, medium, temperature, sealing method and product specification.

Q6: What is the temperature range?

A: Approximately -10°C to +150°C. The actual limit depends on the sealing material and application.

Q7: Can it be used for natural gas?

A: Only when the product, sealing method, certification and installation comply with local gas regulations.

Why Choose NINGXING

NINGXING supplies brass connectors for water, air, gas, oil and equipment piping systems. Its production capabilities include forming, CNC machining, polishing, surface treatment and inspection.

The Brass Y-Type Female Thread Connector is suitable for systems requiring an angled branch layout and three female threaded ports. Multiple sizes, thread standards and surface finishes are available for wholesale, OEM and engineering orders.
